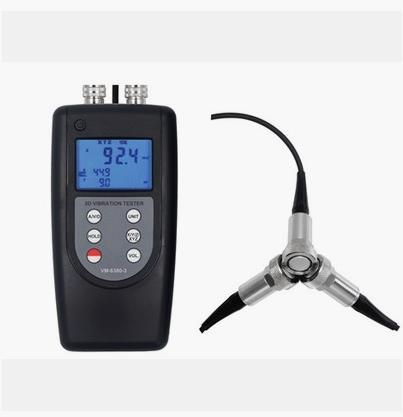

VM-6380-3 three-channel 3D vibrometer velocity acceleration displacement display measurement at three points

1+	5800 CNY (844.5USD)
2+	5700 CNY (829.94USD)
3+	5600 CNY (815.38USD)

add to cart

Product parameters:

Customized processing: no
Brand: snow color
Model: VM-6380-3

Orchid Thai VM-6380-3 three-channel Vibrometer velocity acceleration displacement display measurement at three points

Product features

* Can simultaneously display of three measuring points with the same parameters, or any one of the three parameters of measurement point (acceleration, velocity, displacement).

* In line with international standards ISO2954 for periodic measurements, to detect movement of imbalance and deviation.

* Designed specially for the field measurement of mechanical vibrations in order to quality control, hours of operation and maintenance data provided in advance.

* High performance accelerometers to achieve accurate and reproducible measurements.

* Wide frequency range, in acceleration mode, frequency up to 10Hz~10KHz.

* With an AC signal output, auscultation and records.

* Optional headphones for stethoscope.

* By 'USB Data line output ' and 'RS-232 cable output and PC Communication.

Product application

Applied to the periodic measurements to detect movement of imbalance and deviation. Designed specially for the field measurement of mechanical vibrations in order to quality control, hours of operation and maintenance data provided in advance.

Parameter specifications

Sensor	Piezoelectric vibration sensor
Measurement parameters and ranges	Acceleration: 0.1-400.0M/S2 peak 0.3-1312 ft/S2; 0.0-40g
	Speed: 0.01-400.0/s RMS 0.004-16.00 inch/s
	Displacement: 0.001-4.000mm peak-peak 0.04-160.0 mil

Frequency range	Acceleration: 10Hz. ~ 10kHz
	Speed: 10Hz. ~1kHz
	Displacement: 10Hz. ~ 1kHz
Accuracy	± 5%+2 Word
Metric and Imperial conversion	Convertible
Output
Maximum stay
Automatic shutdown
Battery voltage instructions	Low voltage alarm
Data output	USB, RS-232
Working conditions	Temperature: 0~50 ° c humidity: ﹤ 90%RH
Power supply	4 7th battery
Dimensions	140 x 73 x 35 mm
Weight	415 g

Standard accessories:

1. Host ................................... 1

2. 磁性吸座.......................... 1 bucks

3. Piezoelectric sensor.............. 1

4. 探针 (锥型) ……............ 1

5. Probe (spherical).................. 1

6. 手提便携箱....................... 1

7. 使用说明书...................... 1

Optional accessories:

1. USB Or RS-232 Data cables and software
