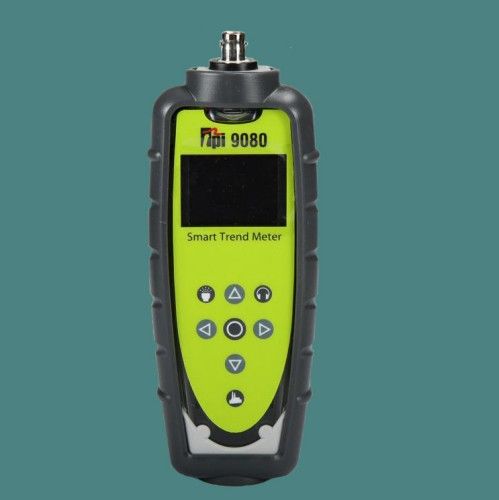

TPI-9080 is a simple to use vibration monitoring and analysis tools, you can easily display signal. Instrument automatically based on the speed of the machine vibration analysis features to help diagnose the fault if it is not balanced, dislocation and loose. The system is designed to enable a user to vibration measurement equipment (such as pumps, motors, and fan bearings). Instrument display frequency graphics to make the details and bearing condition monitoring. TPI-9080 also has an optional Flash attachments are used to determine speed of the machine and an optional Bluetooth headset to listen for bearing noise. Failure comes before they increase productivity and reduce maintenance costs with industry-accepted plugs built-in Bluetooth headset allows you to listen bearing noise – even to your phone!

"Specifications"

TPI The 9080Is a simple, easy to use, low cost vibration meter for recording, analyzing vibration signals, by simply pressing a button. Vibration can be determined: unbalance, misalignment or loose, and bearing condition. Buy vibtrend Standard software give you more ease of use and flexibility. ™ Compatible Windows 7.

To store your vibration parameters analysis and reporting

All of the information is just a click. Alarm highlight with color issues. Trend lines can be displayed before the failure problem.

Report on machine and bearing condition: damage shows color-coded alarm vibration value of bearings ISO Value.

Identify complex issues: 800Vibration spectrum of TV lines of resolution with zoom and cursor functions.

Determine the vibration problems: in addition to bearing problems, including imbalance, bias or loose.

TPI-9080Features:

-Data collection

-Use the vibtrend Software to analyze trend data

-Standard cable with a magnet fixed accelerometer

-Built-in Bluetooth communication capabilities

-Instrument through USB Docking station downloads data to PC

-Built-in meet ISO Standard alarm

-Easily identify bearing BDU Problem

-Built-in filter is easy to identify the problem: 1X (Imbalance) 2X (Misplaced) 3X (Loose)

- 800Line FFT (Spectrum)

-Optional Bluetooth headset to listen bearing noise

-Rugged IP67Shell

Standard accessories

•a9012 IEPE Accelerometer with cable and a9073Magnet

•a9081Docking station with USB Cable

•a9083 vibtrend Standard software and implementation

Optional accessories

•a9082Strobe /Flashlight

•a9084 vibtrend Software professional version

•a9080Bluetooth headset

•a9072 4Inch barbs

•a9086Protective cover and magnet

9080Model specifications

-Dimensions 200 mm x 60 mm x 26mm

-Weight (without magnets)

-Environment: water, sand and dust: IP67Waterproof

-The operation 0°CTo 50 C°

-Storage 20°CTo 70 C°

-Power supply 2Section AA Battery

-Battery life auto power off, usually 20Hours of continuous run time according to the brightness setting.

-Frequency range 2Hz To 1KHz (ISO ) 1 kHz To 10 kHz (BDU)

-Maximum frequency resolution 1.25Hertz @ 800Line FFT Set up

-AccelerationG

-Speed mm/s (Or inch/s)

-Bearing noise BDU (Bearing bearing noise)

-Displacement (mm, microns, inch)

-Display unit of frequency (Hz ) , RPM Or CPM

-Input a user-selectable accelerometer sensitivity

-Dynamic range 96DB (0.01gResolution)

- VA Diagnosis (RPM =Running speed) imbalances 1X RPM, Without taking 2X RPM, Loose 3X RPM

Annex

•A9087Nylon carrying case

Optional

•A9080Bluetooth earbuds /Headphones

•A9072 100mm (4Inch) Barb

•A9084 vibtrend Software full version

Application

• Commercial and industrial air conditioning

• Food processing

• Manufacturing

• Mining

• Packaging

• Petrochemical

• Pulp

• Power generation

• Public utilities

• Car
