Features:
With different design idea, the AIO-1521 designed with optimum configuration of point-of-sale components for small and middle sized businesses.
Multi-angle, flexible adjustment, the panel is available for 0-90 visual angle to meet different installment and use requirements.
Unique protective lock avoiding illegal copies of commercial information and better production of data.
Simple Slide in/out HDD replacement, make maintenance of the data much easier.
Stable touch panel performance, compact design looks professional and comfortable use.
Touch panel built-in, low power consumption to 30W, easy to access all kinds of peripheral expansion.
*Cables available to put through the metal stand, this can avoid the accidental disconnection of cables during the daily cleaning. The product with all the wires looked neat and tidy.
L Built-in Wi-fi Optional.
LAN: RJ-45 *1, support kilomega input;
Specification:

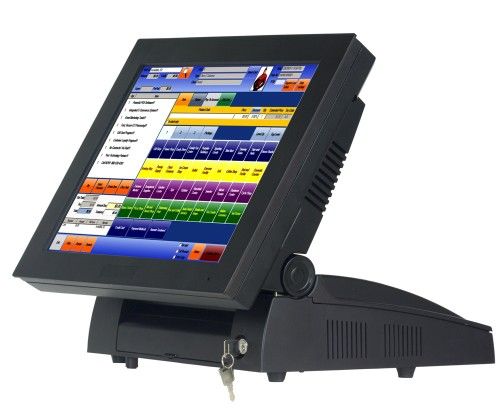

Model Name: AIO-1521
Display Type: 15' Touch screen POSeen POS
Colour: Black
Accessories options: ISO Track 1/2/3 Magnetic Stripe Reader & Customer pole display (VFD / LED8) LED8)LED8)
Motherboard part
Main board: Intel® Core I3ore I3re I3
CPU: Intel® Core I3-2100 processorcessoressor
Chipset
Memory: DDRIII 1066/1333*1 2GB Standard memory
Hard driver: SATA 2.5 inch hard driver 160G or higher
Display part
LCD panel size: 15 inch BRAND NEW TFT LCD
Brightness: 250CD /m2
Resolution: 1024X768(max)
Touch screen: 5-wire Resistive touch screen Taiwan Branded
Viewing Angle: L/R: 140 U/D: 130
Front I/O: USB(2.0) X2 power button X1 reset button X1
Rear I/O: PS2 mouse X1 PS2 keyboard X1
COM port X3
LTP printer X1
VGA out (15Pin D-SUB) X1, duplicate and extend screen available
RJ-45 network X2 RTL8111C
USB(2.0) X4
Audio output X1
Microphone in X1
DC 12V output X1
OperationTemperature: 0 º C to 40 º C 40 º Cm; C 40 º C
StorageTemperature: -20 º C to 60 º C 60 º Cm; C 60 º C
Power Supply: 100V-250V /50-60Hz AC power source input huntkey brand
Power Supply: 100V-250V /50-60Hz AC power source input huntkey brand
Packing dimension: 470X410X310(mm);
Package: Carton box with Foam packaging NW: 6.5KG GW: 8.5KG
Loading quantity 20FCL: 430PCS; 40FCL: 910PCS
Power Consumption 45W(max)
EMC/ Product Safety FCC Class A / CE Mark / LVD / CCC
OS support Windows XP Professional, Windows XP Embedded, WEPOS, Linux
Accessories
AC Power Cable North American and European power cables included; Other regions available upon request.
Driver CD 1*CD disk for motherboard and touch function
POWER: POS power button
DC IN: POS 12V DC input
PS2/M: Mouse
PS2/KB: Keyboard
LPT: 25dB parallel printer
VGA: VGA output
COM1.2.3. Serial devices, Ex. Thermal printer, customer display, scanner
USB: USB Devices
LAN: RJ-45 connect 100MsLAN, Internet
LINE out: Audio output to other device
MIC IN: Speaker input
Products Application:
Hotels, restaurants, fast food shops, cafes, bread shop
Commercial Street, boutiques, department stores, cosmetic stores, high-level barber shop
Sauna, nightclubs, theme parks, casinos, lottery sales points.
Car parks, hotels, aviation, subway, station
