Features:

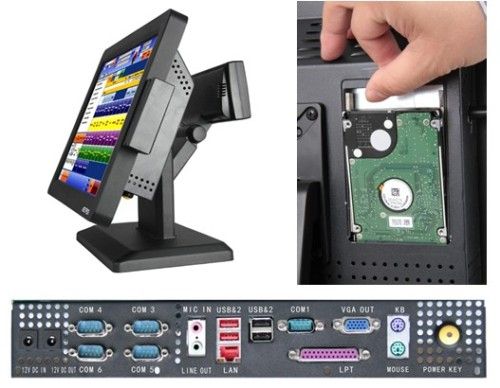

Easy operation on the disc installment and dissembled management
With advanced Fanless design, the main-board circuit works under a better environment without the dust damage
With Wi-Fi function optional
High stable Performance with reasonable cost
With built-in cable connectors, the cables can be plug-in easily, with the good connection, which can eliminate accidental disconnection during the daily cleaning.
Saving space and neat professional look.
Specifications:
LCD size: 15-inch TFT LCD Color Black
Main board: Intel® Processor D525 D525 D525
CPU: Intel® Atom D525 CPU dual-core 1.8GB1.8GB1.8GB
Chip set: Intel D525 + ICH8M chip set
Memory supported: DDRIII 1, 066/1, 333 X 1, 2GB (up to 4GB maximum), 32GB SSD
Brightness: 250CD/m²²sup2;²
Resolution: 1, 024 X 768 pixels (maximum)
Touch screen: 5 wire- resistive panel
Viewing angle:
Horizon: 140 degrees
Vertical: 130 degrees
I/O supporting
Operating temperature: 0 to 40° Ceg; Ceg; C
Storage temperature: -20 to 60° Ceg; Ceg; C
Power input: DC adapter 12V X 5A, 110 to 240V/50 to 60Hz AC power input
Power consumption: 35W (maximum)
Compliance: FCC Class A/CE mark/LVD/CCC
Operating system: Microsoft's Windows X
Optional peripherals: ISO tracks 1/2/3 magnetic stripe reader and Wi-Fi and VFD customer display or 15-inch touch secondly screen (optional)
I/O ports:
1 X power button
Sony's PS2 mouse X 1
Sony's PS2 key board X 1
COM ports X 5
Parallel: 1 X dB25 parallel port
VGA (15-pin D-SUB) X 1
LAN: RJ-45 X 1
USB2.0 X 4
Audio out X 1, 2 X internal speakers (optional)
Mic in X 1
POWER: POS power button
DC IN: POS 12V DC input
PS2/M: Mouse
PS2/KB: Keyboard
LPT: 25dB parallel printer
Application
Hospitality: Hotels, restaurants, fast food shops, cafes, bread shop
Retail: Commercial Street, boutiques, department stores, cosmetic stores, high-level barber shop
Leisure and entertainment: Sauna, nightclubs, theme parks, casinos, lottery sales points.
Business industry: Car parks, hotels, aviation, subway, station
