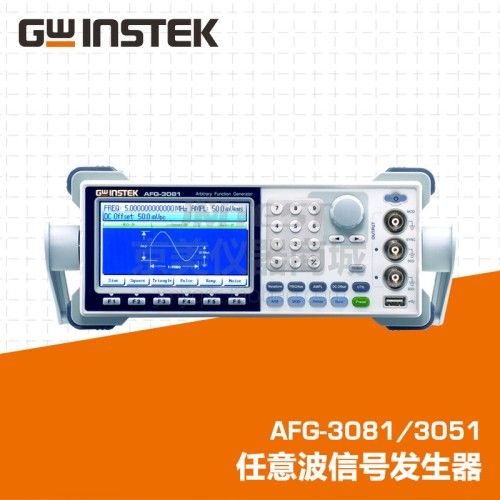

AFG-3051 arbitrary waveform signal generator | | 佛山市顺德区京美仪器有限公司

AFG-3051 arbitrary waveform signal generator |

15000 CNY (2184.05USD)

Product parameters:

Processing customization: No
Type: Waveform Signal Generator
Brand: Gwinstek / solid-wai
Model: 3051
Frequency: 80
Level: 10
Dimensions: 265 * 107 * 374
Weight: 4

			AFG-3081	AFG-3051
Standard waveform			Sine, square, sawtooth, pulse, noise, DC, DC, Sin (x) / x, exponential rise, exponential fall, negative ramp
Arbitrary waveforms
Arbitrary waveform function			Contains, to be constructed
Sampling rate			200 MSa / s
Reconstruction rate			100MHz
Memory length			1M points
Amplitude resolution			16 bits
The amount of memory			10 groups 1M memory (1)
Defined waveform output			Any 2 ~ 1M points
Defined marker output			Any 2 ~ 1M points
Frequency characteristics
range		Sine wave	80MHz	50MHz
		Square wave
		Triangular wave, sawtooth wave	1MHz
Resolution			Lt; / RTI & gt;
accuracy		stability	± 1 ppm 0 to 50 ° C
			± 0.3 ppm 18 to 28 ° C
		Aging rate	± 1 ppm per 1 year
		Tolerance	≦ 1 uHz
Output Characteristics (2)

amplitude		range	10 mVpp to 10 Vpp (into 50Ω) 20 mVpp to 20 Vpp (open-circuit)
		Accuracy	± 1% of the set value ± 1 mVpp (At 1 kHz,> 10 mVpp)
		Resolution	0.1 mV or 4 digits
		flatness	± 1% (0.1dB) <10 MHz ± 2% (0.2 dB) 10 MHz to 50 MHz ± 10% (0.9 dB) 50 MHz to 70 MHz ± 20% (1.9 dB) 70 MHz to 80 MHz (Corresponding to the maximum amplitude sine wave to 1 kHz)
		unit	Vpp, Vrms, dBm,
bias		range	± 5 Vpk ac + dc (into 50Ω) ± 10Vpk ac + dc (Open circuit)
		Accuracy	1% of the set value + 2 mV + 0.5% amplitude height
Waveform output		impedance	50Ω typical (fixed) > 10MΩ (output disabled)
		Input protection	Short-circuit protection, overload relay automatically disable the main output
Synchronous output		range	TTL-compatible into> 1kΩ
		impedance	50Ω standard value
Sine wave
Harmonic Distortion (5)			-60 dBc DC to 1 MHz, Ampl< 3 Vpp -55 dBc DC to 1 MHz, Ampl> 3 Vpp -45 dBc 1 MHz to 5 MHz, Ampl> 3 Vpp -30 dBc 5 MHz to 80 MHz, Ampl> 3 Vpp
Total harmonic distortion			DC to 20 kHz: <0.2% + 0.1 mVrms
Noise (not including harmonics) (5)			-60 dBc DC ~ 1 MHz -50 dBc 1MHz ~ 20MHz -50 dBc + 6 dBc / octave 1MHz ~ 80MHz
Phase noise			< -65dBc typical 10MHz, 30 kHz band < -47dBc typical 80MHz, 30 kHz band
Square wave
Rise / fall time			<8 nS (3)
Radical signal			<5%
Asymmetry			Cycle of 1% + 1 ns
Cycle ratio			20.0% to 80.0% ≦ 25 MHz 40.0% to 60.0% 25 to 50 MHz 50.0% (Fixed) 50 ~ 80MHz
Jitter rate			0.01% + 525 ps < 2 MHz 0.1% + 75ps> 2 MHz
Sawtooth wave
Linearity			< 峰值输出的0.1%
symmetry			0% to 100%
Pulse wave
cycle			20ns ~ 2000s
Pulse Width			8ns ~ 1999.9s Minimum pulse width: ≦ 50MHz: 8ns ≦ 6.5MHz: 5% of the cycle value Resolution: ≦ 50MHz: 1ns ≦ 6.5MHz: 1% cycle value
Radical signal			<5%
Jitter rate			100 ppm +50 ps
AM modulation
Carrier waveform			Sine wave, square wave, triangular wave, sawtooth wave, pulse wave, arbitrary wave
Adjust the waveform			Sine wave, square wave, triangular wave, positive / negative sawtooth wave
Adjust the frequency			2 mHz to 20 kHz
depth			0% to 120.0%
Signal source			Internal / external
FM modulation
Carrier waveform			Sine wave, square wave, triangular wave, sawtooth wave
Modulate the waveform			Sine wave, square wave, triangular wave, positive / negative sawtooth wave
Modulation frequency			2 mHz to 20 kHz
Peak Offset			DC to 80 MHz	DC to 50 MHz
Signal source			Internal / external
PWM modulation
Carrier waveform			Square wave
Modulate the waveform			Sine wave, square wave, triangular wave, positive / negative sawtooth wave
Modulation frequency			2 mHz to 20 kHz
Offset			0% to 100.0% of the pulse wave
Signal source			Internal / external
FSK modulation
Carrier waveform			Sine wave, square wave, triangular wave, sawtooth wave, pulse wave
Modulate the waveform			A period of 50% of the square wave
Internal frequency			2 mHz to 100 kHz
Frequency Range			DC to 80 MHz	DC to 50 MHz
Signal source			Internal / external
scanning
Type of waveform			Sine wave, square wave, triangular wave, arbitrary wave
Types of			Linear / logarithmic
direction			Up / Down
Start frequency / end frequency			100 uHz to 80 MHz	100 uHz to 50 MHz
Scan time			1 ms to 500 s
trigger			Single, external, internal
mark			The falling edge of the sync signal (Programmable frequency)
Signal source			Internal / external
BURST
Type of waveform			Sine wave, square wave, triangular wave, sawtooth wave
frequency			1 uHz to 80 MHz (4)	1 uHz to 50 MHz (4)
count			1 to 1000000 cycles or infinite
Start / tinge phase			-360.0 ° to + 360.0 °
Internal cycle			1 ms to 500 s
Gateway source			External trigger
Trigger source			Single, external, internal
Trigger delay			N cycles, infinite: 0s to 85 s
External modulation input
Types of			AM, FM, Sweep, PWM
voltage range			± 5V full scale
input resistance			10kΩ
Frequency Range			DC to 20 kHz
External trigger input
Types of			FSK, Burst, Sweep
Input level			TTL Compatible
Slope			Rise or Fall (selectable)
Pulse Width			> 100 ns
input resistance			10kΩ, DC coupling
waiting time	scanning		<10 us (typical)
	Burst		<100 ns (typical)
Jitter	Sweep		2.5 us
	Burst		1 ns; except pulse 300 ps
Modulation output
Types of			AM, FM, Sweep, PWM
amplitude	range		≧ 1Vpp
	impedance		> 10kΩ typical (fixed)
Trigger output
Types of			Burst, Sweep
Level			TTL Compatible into 50Ω
Pulse Width			> 450 ns
Maximum frequency value			1 MHz
Fan-out number			≧4 TTL load
impedance			50Ω typical
Tag output
Types of			ARB, Sweep
Level			TTL Compatible into 50Ω
Fan-out number			≧4 TTL load
impedance			50Ω typical
Storage / almost			10 groups of memory space
Communication Interface			GPIB, RS232, USB
monitor			4.3-inch TFT LCD with a resolution of 480 × 3 (RGB) × 272
System characteristics
Configuration Time (Typical)			Function change: Standard ----> 102ms Pulse> 660ms Built-in arbitrary wave -> 240ms Frequency change: 24ms Amplitude change: 50ms Partial duck change: 50ms Arbitrary wave configuration: <2s for 1M points Change the change: <200ms
Arbitrary Wave Download and Resolution Time (Typical)			Binary Code		ASCII Code
			GPIB / RS-232 (115 Kbps)	USB (Device)	USB (Host)
1M point			189 Sec	34 Sec	70 Sec
512K points			95 Sec	18Sec	35 Sec
256K points			49 Sec	9 Sec	18 Sec
64K points			16 Sec	3 Sec	6 Sec
16K points			7 Sec	830mS	1340 mS
8K points			6 Sec	490mS	780mS
4K point			6 Sec	365mS	520 ms
2K points			5 Sec	300mS	390 mS
General specifications
power supply			AC100 ~ 240V, 50 ~ 60Hz
Power consumption			65 VA
Operating environment			Safety Specifications Temperature: 18 ~ 28 ° C Operating temperature: 0 ~ 40 ° C Relative humidity: ≤ 80%, 0 ~ 40 ° C ≤ 70%, 35 ~ 40 ° C Safety class: CAT Ⅱ
