Features:
1, Ergonomic design. Rugged metal shell structure, product reliability, durability.
2, LCD screen can flip display of measurement data and units.
3, Real-time tracking test and two peak modes to choose from.
4, Units of measurement Lbf, Kgf (gf), (K) N Are available.
5, Programmable high /Low-value color led Indicators and output signals to indicate the passage /Do not pass the test.
6, The instrument can be stored 1000Data.
7, Available RS232C or USB Interface to the computer 1000The book can also generate an analysis graph based on statistics.
8, Range overload and battery low voltage indication.
9, The LCD screen can display forward and reverse symbols, visual display screw loosening and tightening state. |

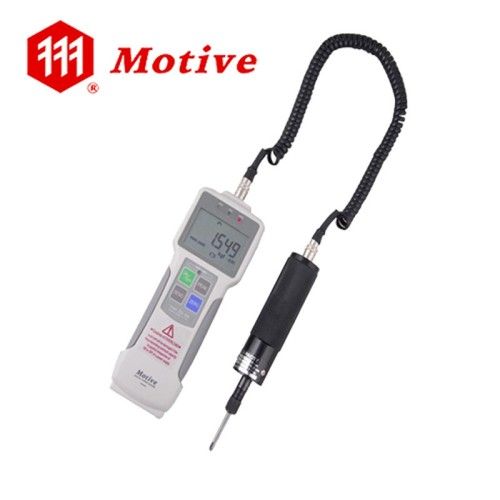

model | ZDP Series digital torque screwdriver | Measuring device | ± 0.2% F.S or ± 1 digit | display | 4Bit LCD liquid crystal display device
Mode - Overload LED LCD - Compare LED LCD (Reversible) | Sampling speed | 1000Times per second | Show updates | 10Times per second | Overload capacity | 200%Full range (LED flicker and buzz over 110%) | A / D converter | 24Bit signal | microprocessor | 8Bit 1 microprocessor | Battery operating time | All charges can be used continuously for about 16 hours | Charging time | About 6 hours | Operating temperature | 0︿ + 40 degrees Celsius | Use the humidity range | 20-80% RH Relative humidity | power supply | Built-in NIMH rechargeable battery AC adapter | Output | USB | Mitutoyo data | USB | Mitutoyo data | Simulation (-2 to + 2V) | Series RS232C | Compare the signal (+ NG, OK -NG) to turn on the collector MAX 30V10mA | The overload warning signal (OVL) turns on the collector MAX 30V10mA | Peak hold | Pressure or tension, pressure and tension | Compare function | Can be set with the color LED high / low set point | Storage function | 1000Data volume value | Show flip function | Measured values and units | Call the police | Overload and + NG (on / off selectable) | Other functions | Auto clear (1.0-25.5 seconds setting) | Damping mode (7 levels set) | Automatically cut off the power function | 5, 10, 30, 60 minutes and switch selectable | External connection switch | Display hold, clear, and peak / trace selection | annex | 6+2An attachment
AC adapter
Portable equipment box
manual
USB connection (optional)
CD-ROM driver (optional) | size | Length 220.5 × width 78 × height 32.3mm | weight | About 520g |
|
