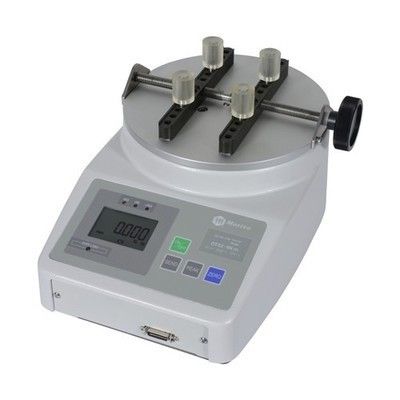

Taiwan MOTIVE promise DTX2-2N bottle cap torque Tester | Bottle Cap torque

6800 CNY (990.1USD)

Product parameters:

(application)

Cosmetic, beverage, food bottle cap torque determination.

(Features)

1, Reduce the instrument trembling.

2, The weight of the instrument, and the vertical force n2Ball bearing to keep.

3, Through n4Clamps are easy to hold the sample.

4, The digital display shows clockwise n/Counterclockwise torque and peak torque.

5, The comparison function can determine the upper and lower limits of the set value. n

6, Memory can be stored at most n1000Measurements.

7, A variety of output such as connecting a personal computer RS-232C , Simulation and Mitutoyo Digital. n

8, Three units optional (N.cm/Kg.m/lb.in or N.cm/Kgf.cm/lb.in).

9, Two types are optional (using battery or nAC Adapter).

(model)

Each series offers the following six ranges

'-A' with '-B' Differences between models

model	power supply
DTX2- (range)-A	AC power supply 100V to 240V
DTX2- (range)-B	NiMH Rechargeable battery or AC adapter

(Optional accessories)

Analog cable CB-201

Use this line to connect to the analog instrument

The recorder SS-100F-MM

Plotted graphs are output through the fitting

RS232C Connection cable CB-204

Use this cord to connect to your computer

software ZLINK2E

Draw the chart and record the measured values through RS-232C From the accessory output

Mitutoyo cable CB-304

Use this cable to connect to Mitutoyo Microprocessor.

Mitutoyo micro processor DP-1 VR

You can print the measured values and do a statistical analysis of the samples

specification

model	DTX2-A series	DTX2-B. & Lt; / RTI & gt; series
Units of measurement	N.m / kg.m / lb.in. or N.cm / kg.cm / lb.in
display	4Digit LCD Unit, mode, overload led , Comparison led
Sampling Rate	1000Times /second
The update is displayed	10Times /second
Torque capacity	exceed 150% Of the rated capacity (over 110% Of capacity led Flashes, rings)
Sample diameter	20Mm to 180Mm
A / D converter	24Bit signal
processor	8Number of bits per micro processor
Precision	+ / - 0.5% Of rated capacity
Battery used	---	approximately 8Hour, charging 10hour
Operating temperature	0 - 40Degrees Celsius
power supply	AC 100V to200V	Ni-MH rechargeable batteries external AC adapter*1
size	View the next page
weight	approximately 4open .5kg
Output	RS232C Mitutoyo digital analog voltage +/- 2V
	Comparison signal+ NG, OK, -NG) Open collector is max 30V DC 10mA
	Overload Torque Warning SignalOVL) Open collector is max 30VDC 10mA
enter	Close contact Display hold, clear, peak mode /Trace mode is optional
Peak mode	'with ' Mode (clockwise and counterclockwise peak) or 'or ' Mode (clockwise or counter-clockwise)
Comparison	Set high and low setpoint with color code
RAM	Can store up to 1000Data
alarm	Output, buzz and led Flashes
	Comparison value + & Gt; NG Began to ring
other	Auto-zero1.0with 25.5) Damping mode (optional 7level)
Automatic shut-down	Disable, 5, 10, 30, 60Minute Optional
