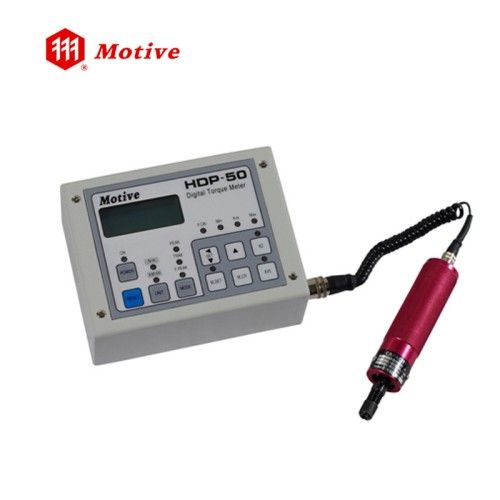

A noble MOTIVE digital torsion Tester HDP-10/50 torque 0.15-10 Kgf.cm

6800 CNY (990.1USD)

Product parameters:

Force type: torque tester
Brand: one promise
Model: HDP-10/50
Type: digital dynamometer
Measuring range: 10-50
Scope: packaging, automotive industry, food processing, medical treatment
Processing customization: No

use:
1, Measure the screwing and unscrewing torque (torque increase and torque relaxation).
2, The torque measurement of various other rotary tools (which may require a connector).
3An example of the use of torque measurement data.
4, Calculate the size of perforated screw holes, can be used as a reference.
5, According to the required torque value of the screw classification.
6, According to the tightness of the screw classification.
7Disruptive tests of small parts.
8, Plastic thread and parts quality control.

Features:
1, The memory can be stored at about once 100Measurement data.
2, Torque measurement of the maximum, minimum and average of the check. 3, Torque display value can be automatically cleared.
4, The torque display value is automatically corrected.
5, The first peak measurement mode makes it possible to measure the sliding torque.
6, The peak value of the torque is locked before the display value is reset to determine the accuracy of the instrument torque setting.
7, Both directions of rotation can be set to facilitate the measurement of tightening or twisting loose when the torque.
8, Counterclockwise torque, the display will be preceded by a negative sign to distinguish.
9, Shows the measurement of the peak value of the capture torque until the reset button is pressed to ensure the accuracy of the recording.
10, Can be integrated into the statistical process control system.
11, Compact, lightweight, rechargeable battery-powered features such as the instrument has a good portability.
12, The data output can be an analog waveform signal, it can be a digital signal, to facilitate a variety of applications. (Optional analog line is required)

Technical Parameters

model		HDP Series of digital torque tester
Precision		Within ± 0.5% (full scale)
measurement method		Track Peak
size	Torque display	12595.642
	Detection section	104 (L) × Φ21	160 (L) × Φ34.5
	Detection of the cutter head socket	MOTIVE4 or 1/4 Hex	MOTIVE5 or1 / 4 Hex
weight	Torque display	780g
	Detection section	68g	250g
Detector lines	1.7m (Order number: DPC-0506)
Power supply (charging time)	1.2V NIMH × 51000mA (within 6 hours)
Fully charged Continuous charging time	8hour
Battery Life	About 300 times chargeable
Dedicated charger	Input voltage: AC100V-120V or 220-240v
	Output voltage: DC7.2V 120mA

parameter

model		HDP-5	HDP-10	HDP-50	HDP-100
Peak measurement range	N. m	0.015-0.500	0.015-1.000	0.15-5.00	0.15-10.00
	N.cm	1.5-50.00	1.5-100.00	15-500	15-1000
	Ibf	0.15-4.40	0.15-9.000	1.5-45.0	1.5-90.0
	Kgf.cm	0.15-5.00	0.15-10.00	1.5-50.0	1.5-100.0
