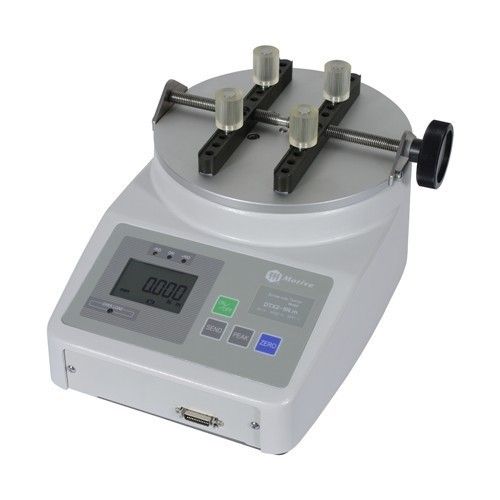

MOTIVE Taiwan promise DTX2-5N bottle cap torque | Bottle Cap torque testers

6800 CNY (990.1USD)

Product parameters:

(application)

Cosmetics, beverages, food cap torque determination.

(Features)

1, Reduce the instrument trembling.

2, The weight of the instrument and the vertical force n2A ball bearing remains.

3, Through n4And the sample is easily caught.

4, The digital display shows clockwise n/Counterclockwise torque and peak torque.

5, The comparison function can determine the upper and lower limits of the set value. n

6, Memory can be stored up to n1000Measurements.

7, A variety of output such as connecting a personal computer RS-232C , Simulation and Mitutoyo digital display. n

8, Three kinds of units optional (N.cm / Kg.m / lb.in. or N.cm / Kgf.cm / lb.in).

9, Two types are optional (using battery or nAC Adapter).

(model)

Each series offers the following six ranges

'-A' with '-B' Differences between models

model	power supply
DTX2- (range)-A	AC power supply 100V ~ 240V
DTX2-range)-B	NiMH Rechargeable battery or AC adapter

(Optional accessories)

Analog cable CB-201

Use this line to connect to the analog instrument

Recorders SS-100F-MM

Draw the chart through the fitting to simulate the output

RS232C Cable CB-204

Use this line to connect to a computer

software ZLINK2E

Draw the chart and record the measured values through RS-232C From the accessories output

Mitutoyo cable CB-304

Use this line to connect to Sampoong Microprocessor.

Mitutoyo micro processor DP-1VR

You can print out the measured values and make statistics on the sample

specification

model	DTX2-A series	DTX2-B series
Units of measurement	N.m / kg.m / lb.in or N.cm/kg.cm/lb.in
display	4Number of bits LCD Unit, mode, overload led Comparison led
Sampling Rate	1000Times /second
Show updates	10Times /second
Torque capacity	exceed 150% Of rated capacity (over 110% Of capacity led Flashing
Sample diameter	20Mm to 180Mm
A / D converter	24Bit signal
processor	8Bit a miniature processor
Accuracy	+ / - 0.5% Of rated capacity
Battery use	---	approximately 8Hour, charge 10hour
Operating temperature	0 - 40Degrees Celsius
power supply	AC 100V to200V	Ni-MH rechargeable batteries external AC adapter*1
size	View the next page
weight	approximately 4open .5kg
Output	RS232C Mitutoyo digital analog voltage +/- 2V
	Comparison signal+ NG, OK, -NG) Open collector is max 30V DC 10mA
	Overload Torque Warning SignalOVL) Open collector is max 30VDC 10mA
enter	Close contact Display hold, clear, peak mode /Trace mode is optional
Peak mode	'with ' Mode (clockwise and counterclockwise peak) or 'or ' Mode (clockwise or counter-clockwise)
Comparison	Set high and low setpoint with color code
RAM	Can store up to 1000Data
alarm	Output, buzz and led Flashes
	Comparison value + & Gt; NG Began to ring
other	Auto-zero1.0with 25.5) Damping mode (optional 7level)
Automatic shut-down	Disable, 5, 10, 30, 60Minute Optional
