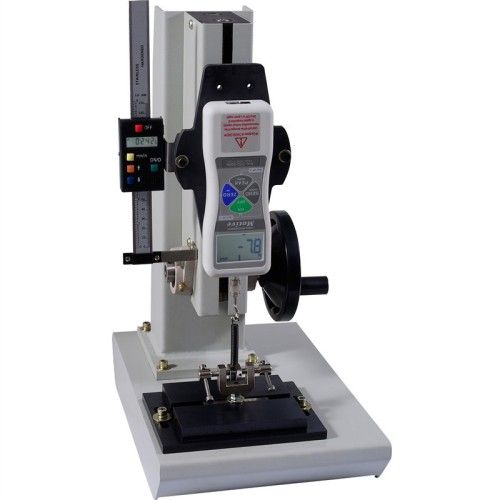

Taiwan MOTIVE one push and pull force meter JSV-500H hand wheel vertical push-pull force bracket test stand
Taiwan MOTIVE one push and pull force meter JSV-500H hand wheel vertical push-pull force bracket test stand
Product parameters:
- Processing customization: No
- Brand: MOTIVE
- Model: JSV-500H
- Measuring range:
- Accuracy: 000
- Specifications: JSV-500H, optional ruler, push or pull meter, 008 fixture, 009 fixture
Features: This manual vertical machine is a double column, increase the stability of the mobile. Instrument mounting plate has a variety of standard hole position, can be installed various models of measuring equipment. Up and down the use of hand wheel Driving the gears can be static and stable in any position, the base is equipped with standard fixture plate, easy to install all kinds of fixtures to complete a variety of test requirements.
Technical Parameters:
Measuring range | 50Kgf |
Move size | 100 mm |
Moving rate | 2mm / revolution |
Jig disc size | 130 x 110 mm |
Machine size | 260 x 360 x 419 mm |
weight | 22Kg |
Attachment: 150mm digital ruler can be installed
