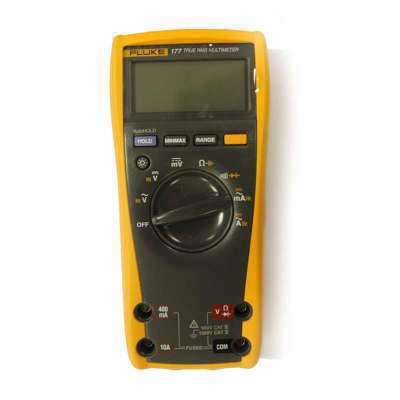

Fluke digital multimeter model 170/CN series rugged, fully applicable to industrial field application of digital multimeter. Harsh environments and high pressure is easy to damage the multimeter, but it is negligible for Fluke170/CN series digital multimeter

• 170/CN Series multimeter Models are True RMS voltage and current measurement
• 0.09% basic accuracy (177/CN, 179/CN)
• 6000-word resolution
• Digital display with analog and backlit (177/CN, 179/CN)
• 170/CN Series multimeter Models are Manual and automatic range
• Displays the maintain and automatically
• Frequency and capacitance measurement
• Resistance, breaking and diode measurements
• Temperature measurement (179/CN)
• Minimum-maximum-average and record function
• 170/CN Series multimeter Models are The smoothing mode, fast changes can filter the input signal
• No cover, you can replace the battery
• Do not open cover calibration via front panel
• Integration of ergonomic jacket
• EN61010-1 CAT III 1000V / CAT IV 600V
• Measuring

  Technical specifications
  DC voltage	175/CN-accuracy * ± (0.15%+2 characters) 177/CN-accuracy * ± (0.09%+2 characters) 179/CN-accuracy * ± (0.09%+2 characters) Maximum resolution 0.1 mV Biggest 1000 V
  AC voltage	Accuracy * ± (1.0%+3 characters) Maximum resolution 0.1 mV Biggest 1000 V
  DC current	Accuracy * ± (1.0%+3 characters) Maximum resolution 0.01 mA Biggest 10 A
  AC current	Accuracy * ± (1.5%+3 characters) Maximum resolution 0.01 mA Biggest 10 A
  Resistance	Accuracy * ± (0.9%+1 characters) Maximum resolution 0.1 Ω Biggest 50 MΩ
  Capacitor	Accuracy * ± (1.2%+2 characters) Maximum resolution 1 nF Biggest 10,000 μF
  Frequency	Accuracy * ± (0.1%+1 characters) Maximum resolution 0.01 Hz Biggest 100 kHz
  Temperature	179/CN-accuracy * ± (1.0%+10 characters) Maximum resolution 0.1°C Range -40°C/400°C
  Note	* Accuracy accuracy for each feature the best

  Environmental parameters:
  Working temperature	-10 ° c to +50 ° c
  Storage temperature	-30 ° c to +60 ° c
  Humidity (without condensation)	0% - 90% (0°C - 35°C) 0% - 70% (35°C -50°C)

  Safety technical parameters
  Overvoltage category	EN 61010-1, 1000 V CAT III. EN 61010-1, 600 V CAT IV.
  Agency certifications	UL, CSA, TÜV and VDE (pending)

  Machinery and general parameters
  Dimensions	43 x 90 x 185 mm
  Weight	420 g
  The warranty period	Lifetime warranty
  Battery life	Alkaline batteries: ~200 hours, typically, no backlight

  Speed is twice times as other multimeters
