Product parameters:
- Brand: FLUKE/fluke
- Model: Fluke27-2
- Specifications: Fluke27-2,Fluke28-2
- AC current: 0
- DC voltage: 0
- AC voltage: 0

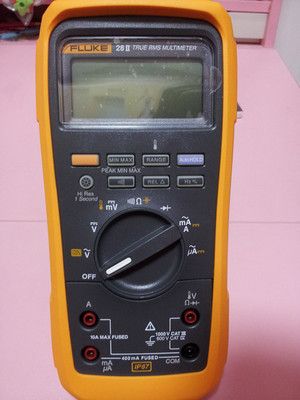

New Fluke 27 II and 28 II digital multimeter set a new standard for measuring under difficult circumstances, and it has excellent functionality and accuracy can easily solve the majority of electrical fault. This two paragraph more with table are meet IP 67 (waterproof and dust) specifications, is accept MSHA of certification approval, and has more wide of work temperature range:-15 ° c to +55 ° c (5 ° f to 131 ° f, in-40 ° c environment Xia can work 20 minutes), 95% humidity, by test can bear 3 meters (10 feet) dropped. New Fluke 20 meter can work in the most demanding environments.
- Can measure up to 1000 v for AC and DC current
- Can measure up to 10A of current (20 a, 30 seconds)
- 10,000 μ f capacitance range
- Frequency up to 200 kHz
- Wider voltage range – 15 Hz to 20 kHz (28 II), 40 Hz to 30 kHz (27 II)
- Built-in temperature table, no need to carry a separate instrument to get a temperature reading (28 II)
- Resistance, diode and continuity test
- Minimum/maximum value and average to allow automatic capture exceptions
- Minimum-maximum (28 II)
- Has a unique function, can accurately measure the variable speed motor and other electrical noise of voltage and frequency on the device (28 II)
|
Features: - Brand new Level – IP 67 waterproof, dustproof, sealed, can work in a demanding environment
- Can handle up to 3 m fell (when the sheath)
- 20,000 points with high resolution display modes (28 II)
- True RMS AC voltage and current, accurate measurement of nonlinear signals (28 II)
- Measuring the average response of voltage and current (27 II)
- Brand new – Backlit keyboard button allows low light area you can easily see
- Large display digital and 2 ' announce black backlight easy to read
- Reversible jacket in meter when not in use to improve performance
- Can withstand the load switch and industrial circuit fault caused by dangerous 8,000 v peak voltage, and in accordance with the second edition of IEC and ANSI electrical safety standards
- Long battery life (800 hours)
- Relative mode eliminates low resistance measurements test of line impedance
- Automatic and manual range adjustment for maximum flexibility
- Optional magnetic suspension device not only allows users to easily set up and view, also be hands free for other work.
|
| Accuracy specifications |
| DC voltage | | Range | 0.1 mV to 1000 v | | Accuracy | 27-II:0.1 % +1 28-II:0.05 % + 1 |
|
| AC voltage | | Range | 0.1 mV to 1000 v | | Accuracy | 27-II:0.5 % +3 28-II:0.7 % +4 |
|
| DC current | | Range | 0.1 μA to 10 a | | Accuracy | 27-II:0.2 % + 4 28-II:0.2 % + 4 |
|
| AC current | | Range | 0.1 μA to 10 a | | Accuracy | 27-II:1.5 % + 2 28-II:1.0 % + 2 |
|
| Resistance | |
| Show points | | 27-II | 6000 | | 28-II | 6000/19,999 |
|
| Capacitor | |
| Frequency | |
| Temperature | | 27-II:N/A 28-II:-200 ° c to +1090 ° c |
|
| Low-pass filter (VSD measurement) | |
| Compliance | | CAT IV 600 V , CAT III 1000V |
|
| IP grade | |
| Power supply | |
| Battery life | |
| General technical specifications |
| Display | |
| Data storage | | Peak transient capture | 250 μS (28 II) | | Minimum/maximum/average | Yeah | | Reading retention | Yeah |
|
| Other functions | | Reading (0) | Yeah | | Battery type | 3 AA batteries |
|
| Warranty and protection | | Security levels | CAT IV 600 V/CAT III 1000 V | | External protection | Rubber jacket | | Fall test | 10 foot fall test | | Dustproof/waterproof | Is that consistent with IP 67 specification | | Warranty | Limited lifetime | | Dimensions (height x width x length) with sheath | 6.35 x 10.0 x 19.81 cm (2.5 x 3.93 x 7.8 inches) | | Weight (with sheath) | 698.5 grams (1.54 pounds) |
|
