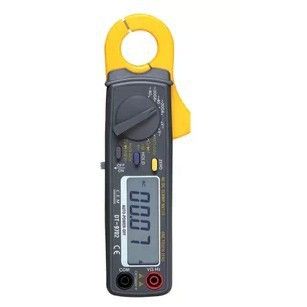

DT-9702 AC/DC AC/DC clamp meter
CEM Launch JAWS for 0.9' DT-9702AC/DC clamp meter, it not only has high accuracy and shell design makes the operation more secure, in line with the IEC61010-2-031And the degree of contamination 2Safety standards

Features:

1. 4000Digits LCD display, reading clarity
2. With automatic shutdown and low battery power display function, which can prolong the battery life-cycle, can remind users to replace the low power battery.
3. Data hold function to save the value, easy to accurately read measured value.
4. DC current measurement zero function

DC current measurement
Range: 3Generic classifier, 20A, 40A, 200A
Basic accuracy: ± (2.5% ± 3d)
Resolution: 10mA
Note: Please ensure that before measuring DC current test probes without connection to the instrument.
AC current measurement
Range: 3Generic classifier, 20A, 40A, 200A
Basic accuracy: ± (3.0%± 4d)
Maximum resolution: 10mA
Note: make sure before measuring AC current test probes without connection to the instrument.
DC voltage measurement
Range: 5Generic classifier, 400mV, 4V , 40V, 400V, 600V
Basic accuracy: ± (0.8% ± 2d)
Resolution: 0.1mV

AC voltage measurement
Range: 4Generic classifier, 4V, 40V, 400V, 600V
Basic accuracy: ± (1.5% ± 3d)
Resolution: 0.1mV
Resistance measurement
Maximum resistance 40MΩ
Basic accuracy: ± (1.2% ± 4d)
Resolution: 0.01MΩ
Capacitance measurement
Maximum capacitance is 200.0uF
Basic accuracy: ± (3.5% ± 5d)
Resolution: 0.1µF
Frequency measurement
Maximum measuring frequency 9.999MHz , Duty cycle0.1% ~ 99.9%
Basic accuracy: ± (0.8% ± 3d)
Resolution: 0.01Hz
Diode and short circuit test
When the diode test test current: 0.3mA Typically, the open circuit voltage: 1.5V DC Typical value
Short circuit test, ﹤30ΩBuzz test current < 0.3mA
