Details:

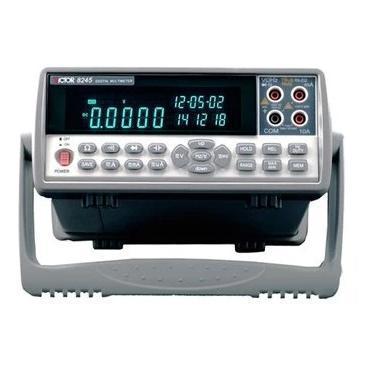

VICTOR 8245 is a USB computer interface, memory, clock display, square-wave output, vacuum screen, automatic range conversion for 4 1/2 digit keys table, is a stable, AC220V power supply drive high-reliability digital form. Table 140*40mmVFD displays, reading is clear; Data retention, maximum/minimum value, relative value measurement function.
This table can be used to measure DC and AC voltage, DC and AC current, resistance, capacitance, temperature, diode continuity buzzer, square-wave output, parameters such as frequency and duty cycle. Machine with dual slope a/d conversion LSI as the core, with automatic and manual selection function, is a superior tool table are laboratories, factories, radio amateurs and ideal for families.

Basic functions
Range
Basic accuracy
Minimum resolution
DC voltage (DCV)
220mV/2.2V/22V/220V/1000V
± (0.05%+3)
10uV
AC voltage (ACV)
220mV/2.2V/22V//220V/750V
± (0.8%+80)
10uV
DC current (DCA)
200uA/2.2mA/22mA/220mA/10A
± (0.35%+10)
0.01uA
AC current (ACA)
200uA/2.2mA/22mA/220mA/10A
± (0.8%+80)
0.01uA
Resistance (ω)
220Ω/2.2kΩ/22kΩ/220kΩ
/2.2MΩ/22MΩ
± (0.1%+20)
0.01Ω
Capacitor (CAP)
22nF/220nF/2.2uF/22uF/220uF
/2.2mF/22mF/220mF
± (3.5%+15)
1pF
Frequency (FREQ)
22.00Hz/220.00Hz/22.000kHz
/220.00kHz/2.2000MHz/22.00MHz
± (0.20%+10)
0.01Hz
Duty cycle measurement
5.0%-94.9%
Square-wave output
620Hz-9.75kHz, the output amplitude 3V
AC real effective value
50Hz—1kHz
Measurement of frequency response
Special features
VICTOR 8245
Diode test
√
Continuity buzzer
√
Overload protection
√
Input impedance
10MΩ
Sampling frequency
2 times/second
Maximum display
22000 (4 1/2)-automatic polarity display and display
Computer interface
USB interface
Volume
310×230×120mm
Work environment
(0~ 40) ℃, relative humidity< 80%
Storage environment
-10~ 50 ℃, relative humidity< 80%
Power supply
100V-120V; 220V-240V
