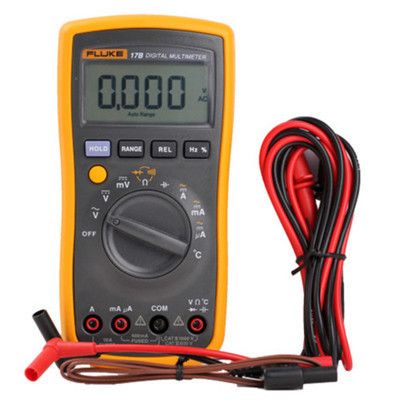

Genuine fluke Fluke17B+ digital multimeter universal portable table meter

1050 CNY (152.89USD)

Product parameters:

Brand: FLUKE/fluke
Model: Fluke17B
Type: Digital Multimeters
Style: handheld multimeter
Customized processing: no
Weight: 0.7
Series: FLUKE
AC current: 0

Has always been to provide you with superior quality

At work, you need a durable, reliable, and accurate digital multimeter. Fluke 17B+ digital multimeter can meet or exceed your needs. Common base measures as well as temperature, frequency and duty cycle measurements. Fluke 17B+ is easy to use, you only need one hand operation, even when wearing gloves can also be flexible in how it can meet all of your needs.

600 v Cat III safety design index
Display range 50%, bright white backlight
Overvoltage indicator
Measurement of frequency and temperature
Voltage, resistance, current, capacitance
Input terminals AC and DC current measurement 10 a
Diode test data hold

Accuracy specifications

Can keep 1 year accuracy after calibration, temperature 18 ° c to 28 ° c, relative humidity of 0% to 75%. Precision format is as follows: ± (% reading + number of least significant digits).

Function	Range	Resolution	Precision
AC voltage (40 Hz to 500Hz)¹	4.000 V 40.00 V 400.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	1.0 % + 3
DC voltage	4.000 V 40.00 V 400.0 V 1000 V	0.001 V 0.01 V 0.1 V 1 V	0.5 % + 3
AC voltage (MV)	400.0 mV	0.1 mV	3.0 % + 3
DC voltage (MV)	400.0 mV	0.1 mV	1.0 % + 10
Diode test²	2.000 V	0.001 V	10%
Resistance (ohm)	400.0 Ω 4.000 kΩ 40.00 kΩ 400.0 kΩ 4.000 MΩ 40.00 MΩ	0.1 Ω 0.001 kΩ 0.01 kΩ 0.1 kΩ 0.001 MΩ 0.01 MΩ	0.5 % + 3 0.5 % + 2 0.5 % + 2 0.5 % + 2 0.5 % + 2 1.5% + 3
Capacitor³	40.00 nF 400.0 nF 4.000 μF 40.00 μF 400.0 μF 1000 μF	0.01 nF 0.1 nF 0.001 μF 0.01 μF 0.1 μF 1 μF	2 % + 5 2 % + 5 5 % + 5 5 % + 5 5 % + 5 5 % + 5
Frequency ¹Hz (10 Hz – 100 kHz)	50.00 Hz 500.0 Hz 5.000 kHz 50.00 kHz 100.0 kHz	0.01 Hz 0.1 Hz 0.001 kHz 0.01 kHz 0.1 kHz	0.1 % + 3
Duty cycle¹	1 to 99%	0.10%	1, typical⁴
AC current μA (40 Hz to 400 Hz)	400.0 μA 4000 μA	0.1 μA 1 μA	1.5 % + 3
AC current mA (40 Hz through 400 Hz)	40.00 mA 400.0 mA	0.01 mA 0.1 mA	1.5 % + 3
AC current (40 Hz to 400 Hz)	4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
DC current μA	400.0 μA 4000 μA	0.1 μA 1 μA	1.5 % + 3
DC mA	40.00 mA 400.0 mA	0.01 mA 0.1 mA	1.5 % + 3
DC current a	4.000 A 10.00 A	0.001 A 0.01 A	1.5 % + 3
Temperature	50 °C- 400 °C 0 °C- 50 °C -55 °C- 0 °C	0.1C	2 % ± 1 °C ± 2 °C 9 % ± 2 °C
The backlight	-	-	Have
¹All current, frequency and duty cycle range is the range of 1 to 100. Below the measuring range 1 of the input value is not specified. ²Typically, open circuit voltage 2.0 v, ﹤ 0.6 mA short circuit current. ³Specification does not include errors caused by test lead capacitance and capacitor plates (when measuring range 40 nF, error up to 1.5 nF). ⁴Usually means that the frequency of 50 Hz or 60 Hz, duty cycle between between 10% and 90%.
