basic skills

Range

Basic Accuracy

model

UT220

AC Current (A)

200A / 2000A

± (2.5% + 5)

AC voltage (V)

2V / 20V / 200V / 750V

± (1.2% + 5)

DC Voltage (V)

2V / 20V / 200V / 750V

± (0.8% + 1)

Resistance (Ω)

200Ω / 2KΩ / 20KΩ / 200KΩ / 2MΩ / 20MΩ

± (1.0% + 2)

special function

Maximum display

2000

Automatic range

√

Opening size

63 mm

Diode test

√

On-off buzzer

√

Data retention

√

The maximum

√

LCD Backlight

√

Full symbol display

√

Automatic shut-down

√

Low voltage display

√

Into the impedance

≥10MΩ

√

General characteristics

power supply

9V Battery (6LF22)

LCD size

43 mm × 30 mm

body color

Red + gray

Body weight

390g

Body size

298 mm x 100 mm x 48 mm

Standard accessories

Test Table Pen

standard packaging

Folding, cloth, the English manual

Standard Package Quantity

40station

Standard Package Dimensions

510 mm × 375 mm × 320 mm

Standard Package Gross Weight

/ RTI & gt;

product description

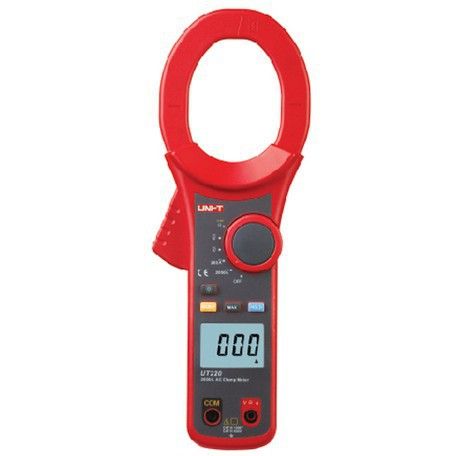

UT220Is a stable, safe and reliable 3 1/2-bit AC-DC digital clamp meter, full-scale overload protection circuit, the unique design makes it a superior performance of the special electrical instruments.

Is used in smelting, manufacturing, petroleum, electricity, chemical industry maintenance / maintenance of the ideal tool.

CE , EN61010-1, EN61326-1, EN61010-2-032
