Product parameters:
- Brand: FLUKE/fluke

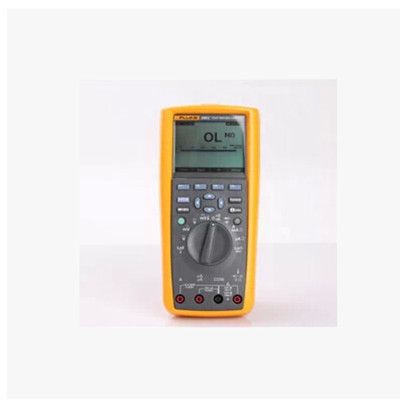

- Model: Fluke289C
- AC current: 0
- DC voltage: 0
- AC voltage: 0
Industrial instrumentation suitable for demanding users.
New diagnostic capabilities to maximize production efficiency. The new 289/CN is the next generation of high performance industrial logging multimeter, can easily solve electronics, factory automation, distribution and complex issues in the electrical engineering equipment. Because you can record data and view it graphically on the screen, so that makes it easy for users to quickly solve the problem and help to minimize downtime. Hurry up to buy the new 289/CN, and make it when you are busy trying to resolve other problems as your system or process monitoring devices.
In addition, please be sure to pay attention to our specially designed for design professionals, has the tendency to capture features of Fluke 287/CN multimeter true RMS electronic records.
Fluke 289/CN equipped with FlukeView tabulation tool can provide maximum efficiency. Built-in recorder and trends in data capture (TrendCapture), allowing you to keep track of difficult to find intermittent equipment problems, but can also perform an unattended monitoring tasks. You can have six integrated multimeter or six time periods of data, find the causes and effects of the problem, or FVF condition monitoring software. It is able to transform complex data into meaningful charts and tables, and generate professional reports. 289/FVF is a tool for effective and economic preventive maintenance
Key features include:
- New – Super 50,000 count, ¼ VGA display with white backlight. Also can display multiple sets of measurement information.
- New-trends capture function for recording meter is an essential tool, it can not only record the user design, the performance of a process or system, and when the user engaged in other projects for unattended monitoring. It can store up to 10,000 readings and measurements can be plotted as a line, to help detect signal anomalies that occur over time. Using the on-board trends capture capabilities, users can graphically view without using PC record readings. (Optional software and interfaces).
- New – continuous recording for more than 200 hours of multiple processes or data. On the performance of design features or perform unattended monitoring is very useful.
- New button-'i information onboard help screens help users understand the measurement function. Not sure a feature? Simply go to the function, and then press the 'i button.
- New – LoZ volts. Low impedance voltage function to prevent false readings caused by the phantom voltage. In addition, it is the recommended mode of testing is charged.
- New – can accurately measure the low pass filter variable speed motor-driven equipment, or other electronic noise of voltage and frequency on the device.
- 50 ohm measuring range – for the measurement and comparison of motor winding resistance, low contact resistance measurements or other differences in resistance. Two Terminal 50 ohm range, resolution 1 mohm, 10 mA source current.
- New – allows you to name the saved measurement values and calls in the field-measured data
- Real-time clock – automatically save readings plus time stamp
- New-field upgradeable and expandable instrument give users ready access to the new features, ensure that the instrument up to date State
- Records-events and trends can help you troubleshoot intermittent problems or monitor the load.
- Brand new-the Multilingual interface
- Soft key, scrolling buttons, and easy navigation controls, you can easily access to secondary functions. In addition, you can also create a custom display.
- 0.025% basic DC accuracy
- Exchange 100 kHz bandwidth
- True RMS AC voltage and current to ensure accurate measurement of nonlinear loads, complex signal.
- Can measure up to 10A of current (20 a, 30 seconds; 10A continuous measurements)
- 100 mF capacitance range
- Temperature function
- Relative mode eliminates low resistance or capacitance measurements when the test impedance
- Peak capture, record minimum time transient signal up to 250 μ s
- High performance test that came with cable and Alligator Clips
- Optical USB interface allows for easy PC communication using the FVF software (not included) for PC download for archiving data records.
- Browse button allows the user to quickly select the menu options and browsing information screen
- Memory can be recorded independently for more than 200 hours of data
- Easily save user favorite measurement settings
- Connectivity/conductivity/capacitor
|
| Technical specifications |
| DC voltage | | Accuracy | 0.025 % | | Measuring range and resolution | 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V |
|
| AC voltage | | Accuracy | 0.4% (RMS) | | Measuring range and resolution | 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V |
|
| DC current | | Accuracy | 0,15% | | Measuring range and resolution | 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A |
|
| AC current | | Accuracy | 0.7% (RMS) | | Measuring range and resolution | 500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A |
|
| Temperature (without probe) | | Accuracy | 1.0 % | | Measuring range and resolution | -200.0 ° c to 1090.0 ° c (-328.0 ° f to 1994.0 ° f) |
|
| Resistance | | Accuracy | 0.05 % | | Measuring range and resolution | 500.00 ?, 5.0000 k?, 50.000 k?, 500.00 k?, 5.0000 M?, 50.00 M?, 500.0 M? |
|
| Capacitor | | Accuracy | 1.0 % | | Measuring range and resolution | 1.000 nF,10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100.00 mF ? |
|
| Frequency | | Accuracy | 0.005% + 1 | | Measuring range and resolution | 999.99 kHz |
|
| Additional features/characteristics | | Multiple screen | Yeah | | True RMS AC bandwidth | 100 kHz | | DBV/dBm | Yeah | | DC mV resolution | 1 μV | | Range (mega-ohm) | Maximum 500 m | | Conductivity | 50.00nS | | Switching the buzzer | Yeah | | Temperature (° c and ° f) | -200 ° c to 1090 ° c | | Battery/fuse disassembly | Battery/fuse | | Peak | 250 μS | | Time clock | Yeah | | Clock | Yeah | | Minimum-maximum-average | Yeah | | Frequency | Yeah | | Duty cycle | From 0.01 to 99.99% | | Pulse width | 0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms | | Keep | Yeah | | Insulation optical interface | Yeah | | Automatic keep/contact | Yeah | | Reading memory | Yeah | | Record to PC | Yeah | | Interval/event recording | Yeah | | Record storage | As many as 10,000 readings | | Low resistance | To 50.000 ω 0.001 ω, 10 mA source current | | LoZ | Yeah | | Low-pass filter | Yeah |
|
| Environmental parameters: |
| Working temperature | |
| Storage temperature | |
| Relative humidity | | 0%-90% (0 ° c to 37 ° c) | | 0%-65% (0 ° c to 45 ° c) | | 0%-45% (45 ° c to 55 ° c) |
|
| Electromagnetic compatibility | |
| Vibration resistance | | Random vibration meets MIL-PRF-28800f standards, 2 instruments |
|
| Impact resistance | | 1 meter drop, in line with the IEC/EN 61010-1, 2nd Edition |
|
| Safety technical parameters |
| Overvoltage category | | CAT III 1000 V/CAT IV 600 v safety standards |
|
| Agency certifications | |
| Machinery and general parameters |
| The maximum voltage between any Terminal and ground wire | |
| Dimensions | | Height x width x length 22.2cmx10.2cmx6cm(8.75inx4.03inx2.38in) |
|
| Weight | |
| Battery life | | Minimum 100 hours, 200 hours recording mode |
|
| Battery type | | 6 AA battery, NEDA 15A or IEC LR6 |
|
