Clamp meter overview

Clamp meter (Clamp meter ), Is a current transformer and ammeter instrument, its working principles and current transformers measuring current is

Sample. Clamp meter formed by the combination of current transformer and ammeter. Current transformer cores in a pinch when you can open; By

Measuring current through the wires don't have to cut through the core open gaps when open wrench core is closed. Through the core

Circuit wire to be measured as current transformer primary coil, which by current induces a current in the secondary coil. Thus

Secondary coil ammeter connected to the instructions -----Line of the current to be measured is measured.

Clamp meter switch and changed the different ranges. But when charged are not allowed to operate. Clamp meter

Accuracy is not high, usually 2.5~ 5Level. for ease of use, there are different ranges of switches in the table for measuring different levels

The current and voltage measurement function.

Clamp meter is used to measure AC current initially, but now a multimeter and some features it has, you can measure AC-DC

Current voltage, current, capacitance, diode, transistor, resistance, temperature, frequency, and so on.

Clamp meter is an electrical circuit used for measurement is running the current size of the instrument, but in the case of power measuring current.

Product description

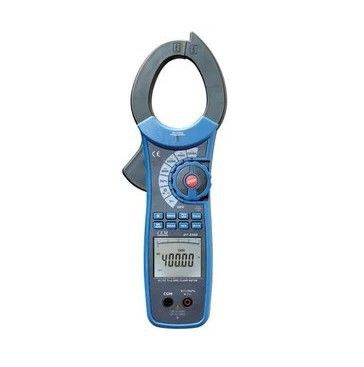

DT-3352Dual injection molded shell design makes the operation more secure, with analog and backlit LCD screen, more conducive to fast

Czech reading, meet 610101-1 CATIV 600V/CATIII 1000V and other international safety standards.

The product has passed Germany GS certification.

Product features

1.1500AAC-DC current measurement

2.40000-LCD display

3.AC true RMS

4.Backlight display

5.Surge current measurement

6.The minimum and maximum values, data retention

7.Relative zero function

8.Automatic shutdown

9.Low voltage alarm

10.41Simulation instructions

11.Opening dimension of the 55mm clamp

Technical product specification

Standard packaging: instruction manual, warranty card, gift box, canvas bags, table pens, 9V battery.
