Basic functions

Range.

Basic Accuracy

DC voltage

200mV / 2V / 20V / 200V / 1000V

±(0.5%+4)

AC voltage

2V / 20V / 200V / 750V

±(0.8%+8)

Direct current

200uA / 2mA / 20mA / 200mA / 20A

±(1.5%+10)

Alternating current

200 mA / 20A

±(2.0%+15)

resistance

200Ω/2kΩ/20kΩ/200kΩ/20MΩ/200MΩ

±(0.8%+3)

capacitance

20 nF / 2 uF / 200 uF

±(2.5%+20)

special function

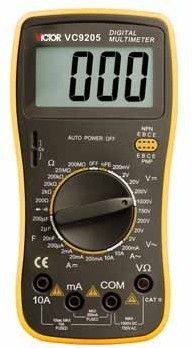

VC9205

Second, the transistor test

√

On-off alarm

√

Low voltage display

√

Data retention

√

Automatic shut-down

√

Function protection

√

input resistance

10MΩ

Sampling frequency

3Times/s

AC frequency response

(40-200) Hz
