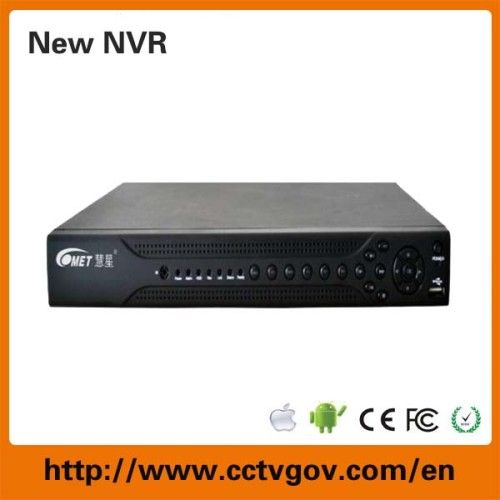

Security Surveillance Support Onvif P2p iPhone & Android Mobile View IP 16CH NVR
| Model NO. | HX-9816D-F |
| Application | Commercial DVR |
| Operating System | Linux |
| Video Compression | H.264 |
| Remote Control | With Remote Control |
| NVR Resolution | 4*3m/8*1080P/16*720p |
| Specification | CE, FCC, SGS |
| HS Code | 8521909090 |
| Type | Standalone |
| Interface Type | BNC/VGA/HDIM |
| Compressed Format | H.264 |
| Video Input/Output | 4 Channel |
| NVR Mode | HD 16CH NVR |
| Trademark | COMET |
| Origin | Shenzhen, China |
Security Surveillance Support Onvif P2P iPhone & Android Mobile View IP 16CH NVR (HX-9816D-F)16D-F)6D-F)
1. NVR record mode: 4*3M/8*1080P/16*720P
2. H. 264 video compression
3.1 CH HDMI Output, 1CH VGA Output
4. Live Display Resolution: 1920× 1080, 1440× 900, 1366× 768, 1280× 1024, 1024× 768, 800× 6001024, 1024× 768, 800× 6000× 6001024, 1024× 768, 800× 600
5. Realtime for display and recording
6. HDD: 2 SATA II, 2TB/3TB
7. Power Supply: DC12V 5A
NVR Technical Specs:
1. NVR record mode: 4*3M/8*1080P/16*720P
2. H. 264 video compression
3.1 CH HDMI Output, 1CH VGA Output
4. Live Display Resolution: 1920× 1080, 1440× 900, 1366× 768, 1280× 1024, 1024× 768, 800× 6001024, 1024× 768, 800× 6000× 6001024, 1024× 768, 800× 600
5. Realtime for display and recording
6. HDD: 2 SATA II, 2TB/3TB
7. Power Supply: DC12V 5A
NVR Technical Specs:
| Model | HX-9816D-F | |
| System Interface | Main processor | Industrial embedded micro-controller |
| The Operating System | Embedded LINUX operating system | |
| System resources | Simultaneous multi-channel real-time video, multi-channel real-time playback, multi-channel network operation, USB backup | |
| Operation interface | 16-bit true color graphical menu interface, supports mouse operation | |
| Screen display | (In a case of purely local, depends on the other channel mode) | |
| 1/4/8/16 Screen | ||
| Video | Video standards | PAL (625 lines, 50 fields/sec), NTSC (525 lines, 60 fields/sec) |
| Image coding | H.264(High Profile); | |
| Monitoring quality | Monitor: D1;VGA: Hi-Def; HDMI: high-definition | |
| Playback quality | Maximum support 1080P; local mode: | |
| 1080P/ 720P / 960H/D1/HD1/CIF/QCIF | ||
| Encoding capabilities | 4*3M/8*1080P/16*720P | |
| Decoding capability | 4*3M/8*1080P/16*720P | |
| Multimodal input | 4*3M/8*1080P/16*720P | |
| Motion detection | Every picture can be set 192 (16*12) a detection area; to set multi-level sensitivity(Local access only) | |
| Audio | Audio compression | G711A |
| Intercom | Support | |
| Video recording and playback | Video mode | Manual ﹥ alarm ﹥ Dynamic ﹥ time > timetime |
| Local playback | 1-16-channel simultaneous playback, | |
| 4*3M/8*1080P/16*720P | ||
| Find video files | Time search, calendar, search, retrieve, channel retrieval | |
| Storage and backup | Each take up hard disk space | Video: CIF 4~5G/day * channels, * channel D1 16~20G/days 960H 24~30G/days * channel; audio: 691.2M/day * channel |
| Save video | Your local hard disk, network | |
| Backup method | Burn network backup, USB HDD, USB, SATA burn | |
| Interface | Video output | 1 BNC,1 Road, VGA,1 Road, HDMI |
| Audio output | 1-channel RCA | |
| Alarm input | No | |
| Alarm output | No | |
| Network interface | Adaptive RJ45 10M/100M Ethernet interface | |
| PTZ control | 1 RS485, support multiple PTZ protocols | |
| USB interface | 2 x USB connector | |
| Hard disk interface | 2 x SATA connector (each Max 2048G) | |
| Wireless interface | 3G, WIFI (extended through USB) | |
| Other | Power supply | 12V/5A |
