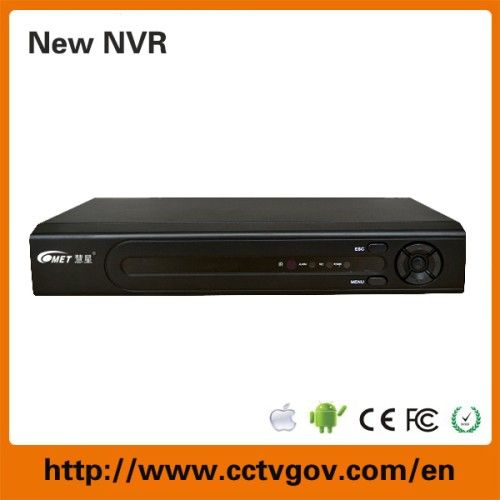

8CH 1080P 720p Standalone NVR with P2p Onvif 1-SATA Recording
| Model NO. | HX-8808T-PL |
| Application | Commercial DVR |
| Operating System | Linux |
| Video Compression | H.264, H.264 |
| Remote Control | With Remote Control |
| Trademark | COMET |
| Origin | Shenzhen, China |
| Type | Standalone |
| Interface Type | BNC/VGA/HDIM |
| Compressed Format | H.264 |
| Video Input/Output | 8 Channel |
| Audio Input/Output | 1 Channel |
| Specification | CE/ FCC/ SGS |
| HS Code | 8521909090 |
8CH 1080P 720p Standalone NVR with P2p Onvif 1-SATA recording (HX-7108NC-C1-A2)
Main Features
* Connectable to the third-party network cameras like AXIS, ONVIF, Panasonic, PSIA, Samsung and SANYO which support ONVIF.
* Up to 8 network cameras can be connected.
* Support live view, storage, and playback of the connected camera with up to the resolution of 720P.
* Simultaneous HDMI and VGA outputs.
* New GUI and support starting record with one key;
* Realize instant playback for assigned channel during multi-channel display mode.
* Up to 8-CH synchronous playback at 720P resolution.
* Customization of tags, searching, and playing back by tags.
* Up to 1 SATA hard disks can be connected, for both recording and backup.
* Support CCTVGOV. NET DDNS (Dynamic Domain Name System);
* Support network detection, including network delay, packet loss, etc.
8CH NVR Specs:
Main Features
* Connectable to the third-party network cameras like AXIS, ONVIF, Panasonic, PSIA, Samsung and SANYO which support ONVIF.
* Up to 8 network cameras can be connected.
* Support live view, storage, and playback of the connected camera with up to the resolution of 720P.
* Simultaneous HDMI and VGA outputs.
* New GUI and support starting record with one key;
* Realize instant playback for assigned channel during multi-channel display mode.
* Up to 8-CH synchronous playback at 720P resolution.
* Customization of tags, searching, and playing back by tags.
* Up to 1 SATA hard disks can be connected, for both recording and backup.
* Support CCTVGOV. NET DDNS (Dynamic Domain Name System);
* Support network detection, including network delay, packet loss, etc.
8CH NVR Specs:
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Brand | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Comet | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Model | Arial'font-family:Arial, Helvetica, sans-serif;'﹥HX-N8808T-PL | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥System | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Main processor | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Industrial embedded micro-controller hisilicon Huawei platform Hi3520D |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Operation system | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Embedded LINUX operating system | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥System resources | Arial'font-family:Arial, Helvetica, sans-serif;'﹥multi-channel real-time record, multi-channel real-time playback, multichannel multiplayer network operations, USB backup | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Interface | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Operate interface | Arial'font-family:Arial, Helvetica, sans-serif;'﹥16 bit true color graphic menu interface supports mouse operation |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Picture display | Arial'font-family:Arial, Helvetica, sans-serif;'﹥1/4/9 picture | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Video | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Video standard | Arial'font-family:Arial, Helvetica, sans-serif;'﹥PAL (625 lines,50 fields/sec) and NTSC (525 lines, 60 fields/sec) |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Video code | Arial'font-family:Arial, Helvetica, sans-serif;'﹥H.264(High Profile) Arial'font-family:Arial, Helvetica, sans-serif;'﹥; | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Monitor quality | Arial'font-family:Arial, Helvetica, sans-serif;'﹥VGA Arial'font-family:Arial, Helvetica, sans-serif;'﹥: Arial'font-family:Arial, Helvetica, sans-serif;'﹥HD Arial'font-family:Arial, Helvetica, sans-serif;'﹥; Arial'font-family:Arial, Helvetica, sans-serif;'﹥HDMI Arial'font-family:Arial, Helvetica, sans-serif;'﹥: Arial'font-family:Arial, Helvetica, sans-serif;'﹥HD | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Playback quality | Arial'font-family:Arial, Helvetica, sans-serif;'﹥1080P/720P/960H/D1/HD1/CIF/QCIF | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Video input | Arial'font-family:Arial, Helvetica, sans-serif;'﹥8*1080P/8*720P/16*D1 | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Motion detection | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Support | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Audio | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Standard | Arial'font-family:Arial, Helvetica, sans-serif;'﹥G.711A |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Intercom | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Non supported | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Record & playbackaybackyback | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Record mode | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Manual ﹥ alarm ﹥ detecting ﹥ timing> timingming |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Local playback | Arial'font-family:Arial, Helvetica, sans-serif;'﹥1/2 channel playback (1080P); 4-channel playback (720P) | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Video search | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Time search, calendar search, events search, channel search | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Storage & backupbackupackup | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Each take up hard disk space | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Video: Arial'font-family:Arial, Helvetica, sans-serif;'﹥CIF 4~5G/day * channel Arial'font-family:Arial, Helvetica, sans-serif;'﹥D1 8~10G/day * channel Arial'font-family:Arial, Helvetica, sans-serif;'﹥960H 12~20G/day * channel Arial'font-family:Arial, Helvetica, sans-serif;'﹥720P 24~30 G/day * channel Arial'font-family:Arial, Helvetica, sans-serif;'﹥1080P 40G~/day * channel; |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Audio: 691.2M/day * channel | ||
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Video save | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Local hard disk, network | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Backup mode | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Network backup, USB HDD, USB, SATA burn | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Interface | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Video input | Arial'font-family:Arial, Helvetica, sans-serif;'﹥RJ45 |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Video output | Arial'font-family:Arial, Helvetica, sans-serif;'﹥1*VGA Arial'font-family:Arial, Helvetica, sans-serif;'﹥, Arial'font-family:Arial, Helvetica, sans-serif;'﹥1*HDMI | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Loop output | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Non supported | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Audio input | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Non | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Audio output | Arial'font-family:Arial, Helvetica, sans-serif;'﹥HDMI | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Alarm input | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Non | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Alarm output | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Non | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Network interface | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Adaptive RJ45 10M/100M Ethernet interface | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥PTZ control | Arial'font-family:Arial, Helvetica, sans-serif;'﹥1 RS485, support multiple PTZ protocols | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥USB interface | Arial'font-family:Arial, Helvetica, sans-serif;'﹥2*USB | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥HDD interface | Arial'font-family:Arial, Helvetica, sans-serif;'﹥1 x SATA connector (supports 4T) | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Wireless interface | Arial'font-family:Arial, Helvetica, sans-serif;'﹥3G, WIFI (extended through USB) | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Others | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Onvif protocal | Arial'font-family:Arial, Helvetica, sans-serif;'﹥Supported |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Power | Arial'font-family:Arial, Helvetica, sans-serif;'﹥12V/2A | |
| Arial'font-family:Arial, Helvetica, sans-serif;'﹥Dimension | Arial'font-family:Arial, Helvetica, sans-serif;'﹥255 (L) * 225mm (W) * 45mm (H) | |
