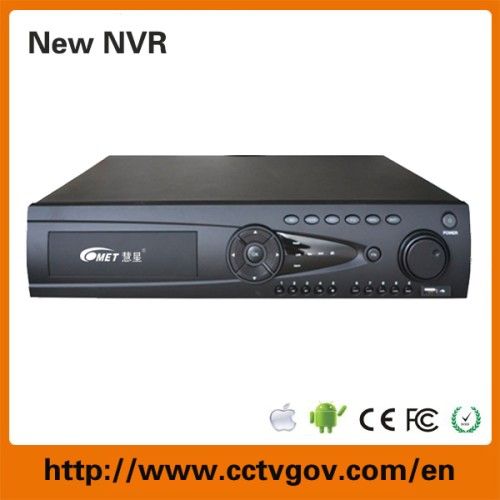

Shenzhen Top5 NVR Factory P2p CCTV Onvif 32CH H. 264 NVR
| Model NO. | HX-9124K-P |
| Application | Commercial DVR |
| Operating System | Linux |
| Video Compression | H.264, H.264 |
| Remote Control | With Remote Control |
| Trademark | COMET |
| Origin | Shenzhen, China |
| Type | Standalone |
| Interface Type | BNC/VGA/HDIM |
| Compressed Format | H.264 |
| Video Input/Output | 32 Channel |
| Onvif | Support |
| Specification | CE/ FCC/ SGS |
| HS Code | 8521909090 |
Shenzhen Top5 NVR Factory p2p cctv onvif 32CH H.264 NVR (HX-9124K-P)
8*5M/16*3M/24*1080P/32*960P ip camera access storage ;
1/4/8/16/24/32 screen;
8*SATA, Gigabit Ethernet, supports ONVIF
NVR Main Features:
* Connectable to the third-party network cameras like AXIS, ONVIF, Panasonic, PSIA, Samsung and SANYO which support ONVIF.
* Up to 32 network cameras can be connected.
* Support live view, storage, and playback of the connected camera with up to the resolution of 720P.
* Simultaneous HDMI and VGA outputs.
* New GUI and support starting record with one key;
* Realize instant playback for assigned channel during multi-channel display mode.
* Up to 4-CH synchronous playback at 720P resolution.
* Customization of tags, searching, and playing back by tags.
* Up to 8 SATA hard disks can be connected, for both recording and backup.
* Support network detection, including network delay, packet loss, etc.
32CH NVR Specs:
8*5M/16*3M/24*1080P/32*960P ip camera access storage ;
1/4/8/16/24/32 screen;
8*SATA, Gigabit Ethernet, supports ONVIF
NVR Main Features:
* Connectable to the third-party network cameras like AXIS, ONVIF, Panasonic, PSIA, Samsung and SANYO which support ONVIF.
* Up to 32 network cameras can be connected.
* Support live view, storage, and playback of the connected camera with up to the resolution of 720P.
* Simultaneous HDMI and VGA outputs.
* New GUI and support starting record with one key;
* Realize instant playback for assigned channel during multi-channel display mode.
* Up to 4-CH synchronous playback at 720P resolution.
* Customization of tags, searching, and playing back by tags.
* Up to 8 SATA hard disks can be connected, for both recording and backup.
* Support network detection, including network delay, packet loss, etc.
32CH NVR Specs:
| Brand | Comet | |
| Model | HX-N9124K-P | |
| System | Main processor | Huawei Hi3535 industrial-grade embedded microcontroller controller platform |
| Operate system | Embedded LINUX operate system | |
| System resources | Multi-channel real-time record sync, single way real-time playback, multi-channel multiplayer network operation, USB backup | |
| Interface | Operate interface | 16-bit true color graphical menu operation interface, support mouse operation |
| Picture display | 1/4/8/16/24/32 pictures | |
| Video | Video standard | PAL(625 lines, 50 field/s); NTSC(525 lines, 60 field/s) |
| Video code | H.264(High Profile); | |
| Monitor quality | VGA: HD;HDMI: HD | |
| Playback quality | 5M/3M/1080P/720P | |
| Video input | 8*5M/16*3M/ 24*1080P/32*960P Access storage | |
| Motion detection | ||
| Audio | Standard | G.711A |
| Intercom | Support | |
| Record & playbackybackyback | Record mode | Manual ﹥ alarm ﹥ timing ﹥ detection dynamicon dynamic |
| Local playback | 2*5M/ 4 *3M/ 4 *080P/ 8*960P real-time | |
| Video search | Time retrieval, calendar retrieval, events retrieval, passage retrieval | |
| Storage & backupackupackup | Each takes up hard disk space | Video: CIF 4 ~ 5 G/day * channel ; D1 8 ~ 10 G/day* channel, 960h 12 ~ 20 G/day* channel, 720p 24 ~ 30 G/day* channel, 1080p 40 G/day * channels; |
| Audio: 691.2 M/day * channel | ||
| Video save | Local Hard disk, network | |
| Backup mode | Network backup, USB mobile hard disk, USB burn, SATA burn | |
| Interface | Video input | RJ45 |
| Video output | 1*VGA,1*HDMI | |
| Loop output | Not support | |
| Audio input | 1*RCA | |
| Audio output | 1*RCA | |
| Alarn input | 16 channel | |
| Alarm output | 4 channel | |
| Network interface | RJ45 10m / 100m / 1000m adaptive Ethernet port | |
| PTZ Control | 1*RS485, 1*RS232; Support for multiple kinds of PTZ agreement | |
| USB interface | 2*USB interface | |
| HDD interface | 8* SATA interface (each maximum support 4TB), 1*E-SATA interface | |
| Wireless interface | 3G,WIFI(via a USB extension) | |
| Others | Onvif protocal | Support |
| Power supply | DVR dedicated ATX power supply | |
| Size | 442mm(L)* 430mm(W)* 91mm(H) | |
