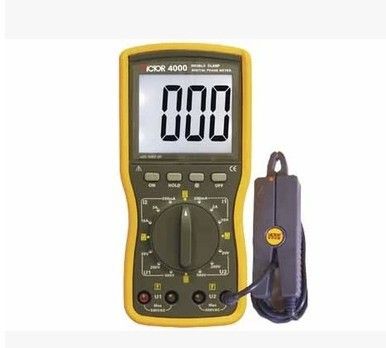

Double clamp digital phase meter | Victory | VICTOR4000 multimeter VC4000

1+	2980 CNY (433.9USD)
3+	2880 CNY (419.34USD)
5+	2780 CNY (404.78USD)

add to cart

Product parameters:

Brand: Victor/victory
Model: VC4000
Type: Digital Multimeters
Style: Benchtop multimeters
Usage: professional use
Automatic range: Yes
Diode test: Yes
Data: Yes
Auto power off: Yes

Details:

VICTOR 4000Double clamp digital phase meter was developed by our company and a multifunction instrument designed for field tests with high accuracy, high stability, low power consumption, easy to use and so on. Can in was measuring loop not open of situation Xia directly measurement Exchange voltage and Exchange current, measurement two voltage between, two current between and voltage current between of phase, also, also can indirect measuring have circuit of power factor and power, can discriminant three-phase phase sequence, transformer wiring constituency, perceptual, capacity sex circuit, test two times loop and mother poor protection system, read travel moving protection the Group CT The phase relationship between, check meter wiring is correct or not, the equipment maintenance lines.

VICTOR 4000Double clamp digital phase meter uses large LCD Screen has blue screen backlight, shows at a glance, full of exquisite luxury appearance.

VICTOR 4000Double clamp digital phase meter for power, petrochemical, metallurgy, railway, meteorology, mining enterprises, research institutions, measuring Department.

Technical specifications:

General specifications

Reactive power Can	Phase, alternating current, AC voltage, AC leakage current, phase-sequence test directly; Group of transformers, inductive, capacitive circuit judge; Power factor and power indirectly, test
Electricity Source	DC9V Alkaline dry batteries (1.5V AA×6)
Reactive power Consumption	Open the backlight up to approximately 35mA,Battery for about 40Hour
Reactive power Consumption	Turn off backlight lamps ,Instrument power consumption of about 5mA,Battery for about 300Hour
Display mode	LCD Display, blue backlight function, suitable for dark places
LCD Dimensions	70mm ×62mm
LCD Display	64mm ×54mm
Meter size	Long generous: 196mm ×92mm×54mm
Jaw size	φ7.5mm×13mm
Sample rate	About 3Times /Second
Volume Drive	AC voltage: 0~ 20V/200V/500V
	AC current: 0~ 200mA/2A/10A
	Phase: 0~ 360 °
When measuring the phase measured signal amplitude range	Measuring U1-U2Phase: 30V~ 500V
	Measuring I1-I2Phase: 10mA~ 10.00A
	Measuring U1-I2Or I1-U2Phase: 10V~ 500V, 10mA~ 10.00A
Data retention	Testing press HOLD -Keeping the data, 'DH' Symbol display
Automatic shutdown	Power on for about 15Minutes later, the instrument automatically shutdown to reduce battery consumption
Voltage detection	When the battery voltage is below 7.8V~ 8VWhen the battery low symbol appears, reminding battery replacement
Appearance quality	Host about 550g (With battery), the table clamp is about 170gX2Test line250g
Test length	1.5m
Current clamp cord length	2m
Working temperature and humidity	-10℃~ 40℃; 80%Rh The following
Storage temperature and humidity	-10℃~ 60℃; 70%Rh The following
Input impedance	The input impedance of the test voltage: 2MΩ
Input impedance	Measuring U1U2Phase voltage input impedance: 40KΩ
Resistance Pressure	Meters between shell and tolerance 1000V/50Hz Sine-wave AC voltage duration 1Here minutes; Between two voltage inputs can withstand 500V/50Hz Sine-wave AC voltage duration 1Minutes of testing
Must Edge	Meters between the shell and, between two voltage inputs ≥10MΩ
Knot Frame	Double insulated

Standard accessories:

Meter boxes	1Generic classifier
Current clamp	2The
Test line	4(Red and black 2Long things)
Battery	6(Alkaline batteries: 1.5V AA)
Brochure	1This
Certificate	1Copy
