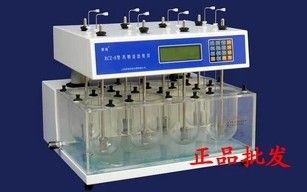

RCZ-8Intelligent drug dissolution apparatus

Details
RCZ-8Smart dissolution Tester RCZ-6Based on lessons learned over the years in the production of dissolution apparatus on the basis of successful experience ,Using advanced technology and component research and development of a new drug dissolution apparatus ,Quality performance in line with the national pharmacopoeia 2010Version of the standard.

Main features

○Can be installed 8Blue poles or pulp.
○Can be installed 8Dissolution of a Cup.
○Automatic sampling needle raising and lowering functions
○Host parameter can be preset and stored automatically ,Next time you boot without repeating set.
○Speed is controlled by power segment drive stepper motor ,Accurate speed ,Smooth operation ,Low energy consumption.
○Constant temperature water bath using the built-in PT1000Sensor ,Software use PID Way ,Warming fast ,High precision ,Easy software correction of deviation.
○Timing function displays the current sampling time ,Cumulative total time ,Sampling points.
○With self-test function and automatic protection function , Fault signal is given.
○Temperature Preheat time ,Recovery operating system software.
○With print and USB storage functionality ,Experimental data retention ,In order to view.

Technical specifications

○Stirring paddle swing: ≤ 0.5㎜
○Go blue swing: 1 ≤㎜
○Speed range :25- 250Go /Cent
○Speed resolution :1Go /Cent
○Speed error : ≤±1%
○Temperature adjustment range :(At room temperature )- 45℃
○Temperature resolution :0.1℃
○Heating power :1000W;Temperature control error : ≤ ± 0.1℃
○Time time :The longest 5999Here minutes ,Countdown
○Sampling cycle time :A maximum of 10Different sampling periods ,Countdown
○Sampling cycle time : The longest 5999Here minutes ,Countdown
○Power :AC220V±10%,50Hz,1000W
○Environmental working conditions :Temperature 0-40℃,Relative humidity ≤80%HR
