NS-1-type mud water loss detector detailed parameters

First, NS-1 type of slurry loss of water use

Applicable to the well site or laboratory measurement of mud water loss, a certain volume of slurry in the specified air pressure is the amount of filtrate out of water.

Second, NS-1-type slurry water loss tester Instrument structure:

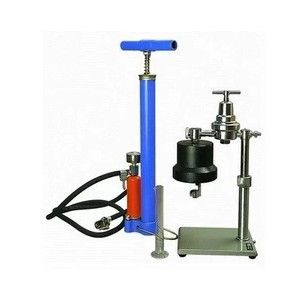

It consists of gas source (air pump with accumulator) and instrument, which mainly consists of pressure reducing valve, mud cup, bracket and other components.

3, NS-1-type mud water loss tester works: by the pump to provide compressed air, the pressure regulator can be adjusted to the required pressure value sent to the mud cup (into the mud cup

Channel by the release valve control) cup of mud due to pressure difference water loss.When the pressure gauge pointer is stable 0.7Mpa, the time 30min, the outflow of the filtrate is the mud water loss.

The amount of water loss has been greater than 8ml, then the loss of water multiplied by 2, the slurry is the approximate amount of water loss, but the need to record the measurement time is 7.5min.

4, NS-1-type slurry loss of water detector Technical parameters:

1. Mud pressure: 0.69MPa

2. Filter area: 45.6 ± 0.5cm2

3. Mud cup capacity: 240ml.
