ZC3-D type a poses digital back play instrument is by China national industry standard back play method detection concrete compressive strength technology procedures GB/T23-2001 (following referred to procedures) of parameter series units Shandong province leling back play instrument factory carefully development, has independent intellectual property, won more items national patent (ZL2010202044961, 201030180897.3) and can in verification device Shang for verification, completely meet back play instrument national verification technology procedures JJG817-93 requirements, applicable to all types of construction works in the C10-C60 non-destructive testing of concrete compressive strength.

ZC3-D integrated digital resiliometer module integrates all work within a shield, set display and port traffic, press command-and-control, voice in one, greatly improving the stability and security of the system. Main function: sampling, review, set, online, and other functions. Entire machine powered by 1600 mAh lithium-ion battery 3.7V, 128 x 32 dot matrix LCD, sensor is plugged in directly to the motherboard with onboard integrated. Press 4 key design: left button, right button, OK key and the c key, the c key and the power on key reuse. With automatic recording, automatic storage, automatic calculation, automatic data processing functions, increase sampling, data processing and reporting efficiency, reduces the intensity of inspection personnel, reflects the rebound testing of scientific advancement, fairness and accuracy.

Leling rebound hammer factory in Shandong province is of various rebound hammer, non-destructive testing equipment and rebound device calibration device manufacturer, has a high profile at home and abroad, is the brand of choice for test engineers, testing organizations around the years thanks to the help and support, development and growth. I consulted the needs of our personnel to study and improve the industry's shortage of old-fashioned numbers rebound hammer, developed a new generation of ZC3-D integrated digital rebound hammer. Our factory always adhere to simple and practical, high quality, easy to learn and easy to understand principles of rebound hammer mechanical features such as easy to maintain, leading the non-destructive testing on digital, a new era of intelligent.

2, random software: random free computer software for data processing, upon completion of the field sampling data, rebounding instrument communication cable connected through USB ports, to transfer data to the computer, you can immediately generate a test report.

3, data views: sample can view completed components immediately after the completion of the original rebound value, measured strength values component comprehensive evaluation data.

4, the real time clock: real time display, record the sampling time, and can be uploaded to the computer software.

5, battery monitoring: real-time monitoring of battery depleted alarm so users can plan work.

6, strength-measuring curve: built-in uniform strength curve curve and more than more than 10 places, before sampling through the ' settings ' platform settings.

7, the appearance of rebound hammer: rebound hammer design elegant, compact and handy, convenient handheld operation and data view OLED LCD screen; Standardized keypad layout, started operations.

8, sensor gratings: highly elastic sensor with independent intellectual property rights fully meet the accuracy of the data.

9, the rebound reading value: mechanical resiliometer unblocked the slider cursor values, comes with mechanical indication of complete reunification of the LCD screen, easy calibration at any time. And the traditional mechanical rebound hammer in the rebound hammer special test on the test. Rebound hammer manufacturer in the industry, more than 20 rebound hammer powerful guarantee for professional production techniques, the State of the technical specification for testing concrete strength by rebound method (JGJ/T23-2001) editing unit. Exclusive full support of the ultrasonic-rebound combined method of the technical specification for testing concrete strength (CECS02:2005) unit of our factory is the editing of this practice. Nationwide fast, thorough, meticulous service to allow customers more peace of mind.

Main technical parameters

Data-processing based on built-in of the technical specification for inspection of concrete compressive strength by rebound method (JGJ/T23-2001); In some provinces, municipalities, district local technical specification for testing;

Storage memory: 128 pieces, up to 20,480 points and related data;

Display: 55x13 (mm) 128x32 (dot) OLED LCD; Power supply: 3.7V lithium-ion battery;

Power consumption: 50mA (backlight off) standby less than 10mA; Communication rate: 115200bps;

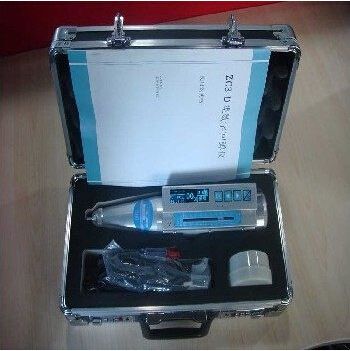

Machine composition
