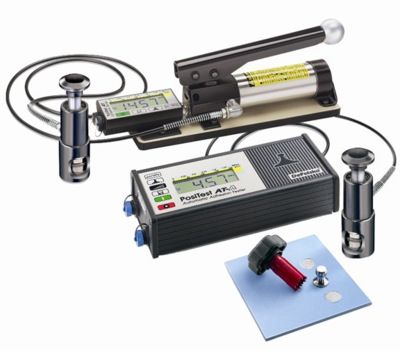

PosiTest Pull off adhesion test device

Measurement of metal, wood, concrete and other coating adhesion on the substrate, innovative Automatic centering and pull display function

AT-A -Automatic

Substrates coated for a specific area through hydraulic pull tests.

New type of electric control hydraulic pump ,In pull rate-setting, automatically providing continuous smooth pulling force

USB Port used to download

Power adapter interface is used to charge the battery and instrument power consumption

Environmental sealing ,One-piece metal housing

Used to isolate the test surface cutting tool

1.5Here metres High quality hydraulic hose ,Can be used to access areas

Weatherproof

Automatically pull unit quick coupling

One-time use, automatically pull the spindle to ensure that uniform pull

Two types of features common to:

Simple

Portable, needs no external power supply —For field and laboratory use

Pull rate display ,Make it easier for operators to observe and adjust the pull rate, in line with the international standard test method

Just press the key, you can choose to pull unit size, change the unit of measurement or store readings

No conversion table ,Automatic size calculation according to pull unit pulling force

Cheap, disposable pull unit ,Do not clean to use, can be used for long-term record keeping

Each instrument includes everything needed for testing devices

Durable

Environmental sealing, weather-proof ,Dust-proof and shock-proof

High quality design of the hydraulic pump can be under any operating conditions

Sturdy solid suit

Two-year warranty

Accurate

Each instrument by NIST Back pressure sensor calibration, accuracy ±1%

Aluminum auto pull unit to ensure smooth or rough surface for accurate measurement

Continuity of high pressure sensor accuracy for industrial use

In line with ASTM D4541/D7234,ISO 4624/16276-1,AS/NZS1580.408.5And other standards

Multi purpose

Pulling data stored within, including the maximum pulling force, pulling rate test time and pull the spindle size

Options and accessories PosiSoft Software for downloading measurement data

10, 14, 20And 50mm Pull spindle, bonding strength for different products ,Extend the capabilities of instruments and resolutions

Liquid crystal display ,Have MPa Or psi Two units

Automatic centering function

Instruments to compensate for misalignment due to measuring surface uneven.

Self can pull off force measuring device for testing the surface evenly, preventing the unilateral pull.

Pulling unit: PosiTest Pull off adhesion test device use cheap aluminum pull spindle compliant with international testing standards for different bonding strength provide different pull spindle size 10, 14, 20And 50mm

Uniform pulling force

BRACKET

Quick connector

Adhesive (uneven surface)

Coating

Base material

PosiTest Manual traction device AT-M

Heavy duty hydraulic pump, used to provide a continuous smooth pulling power

Pull rate display, you can manually control adjustments

Provides 2Section AAA Alkaline batteries

PosiTest AT-A Automatic adhesion Tester

New type of electric control hydraulic pump ,Automatically according to the pull pull rate provides continuous steady force

Simply press the key to be tested, no force, no need to close the valve and reset the probe or adjustment scale

Pull rates to choose from, international test standard requirements meets a wide variety of industries, such as metal, wood, and concrete.

Built-in rechargeable batteries per charge 200Tests can also be tested when the AC power supply to charge. The supplied universal AC adapter

Low battery symbol

Storage symbol appears with a data storage

Set unit

Set the spindle size

According to international testing methods set pull rate

Store browsing data

Boot /Start test

Shutdown /Stop the test

Observation monitor is easy to set up pull pull rate rate

Large screen LCD displays measurement data and retain the maximum value

Technical parameters:

Spindle size 20mm

Resolution 0.01MPa(1psi)

Precision ±1%Full scale

Pulling out strength 0-20MPa(0-3000psi)

*Other size spindle can be selected to meet the unique needs

**According to the spindle size change

Instruments include:

Pull tester with digital display, 20mm Aluminum test spindle (20) And polishing pad, cutting tool, Rod and reconcile with reconciling the glue, cotton swab, operation instructions and demo CDs, can be traced back to NIST Calibration certificate, two-year warranty, lightweight Sturdy carry case

Weight (including case) : 5.5kg/12 1bs

Suitcase dimensions: L –43cm/17in

W –33cm/13in

H –15cm/6in

Power supply: manual -Built-in battery -Automatic -Built-in rechargeable Ni-MH battery with AC adapter

Options and accessories

50mm Accessory Kit

Applies to low bond strength of coating, such as wood, concrete, and plastic coating on the

Large measurement area increases the low range test of accuracy and repeatability

Measuring range 0-3.5MPa(0-500psi)

Included 1Generic classifier 50mm Locator, 1Generic classifier 50mm Cutting tools, 12Generic classifier 50mm Aluminum spindle

Drilling templates for 20mm And 50mm Spindle

-Drilling template and drill bit used to isolate testing areas, applied in thicker coatings on concrete

Glue Kit -Including glues, to reconcile the great harmony and cotton swabs

PosiSoft Software -Windows Operating system used

Displays pull pull rate test time and spindle sizes, up to 200The number according to

Calculate maximum, minimum, average and standard deviation

Print charts and histograms

Real-time graphic display test process, detailed analysis of pull force changes with time (applies only to manual)

Allows you to enter notes and comments

Data can be output to a file or table

Multiple language support including English, German, Italy, Spain and French

USB Computer cables

Free upgrade

Spindle

Can also provide 10, 14, 20And 50mm Spindle
