ZC3-W wireless rebound Tester/rebounding instrument with digital display separate measurements | ZC1 springback of high strength Tester

7200 CNY (1048.34USD)

Product parameters:

Customized processing: no
Brand: leling
Model: ZC3-W
Measuring range: 785 ± 40.0mm

Introductions	ZC3-W wireless digital rebound is my factory with independent intellectual property rights (patent number: 2010202044961, 2010202044919), a new generation of ' intelligent ' digital rebound hammer. By using non-contact-type linear, light coupler displacement sensors, the pointer without any wires connecting the slider; The world's first wireless transmission interactive host and extension technologies. And you can test on the test, in full compliance with national rebound Hammer testing technical specification for the requirements of the JJG817-93, applicable to all types of construction works in the C10-C60 non-destructive testing of concrete compressive strength.
Features	1, traditional resiliometer is using cable lines to connect the host and extension, due to the plug, pull, bend, wear easily cause poor contact failures, this machine uses wireless data transmission technology in the world's first completely free of this kind of problem. 2, non-contact photoelectric sensor to completely get rid of the high failure rate of short service life of conventional resistive sensor trouble; 3, the value of rebound hammer mechanical scales, extension hosts large LCD screens and OLED screen can compare in real time, easy to use and avoid error; 4, local strength curve for all built-in, easy to use, avoiding human errors write error curve data test results, exception value automatically removed. 5, host new software operating system, intelligent user interface, simple yet powerful features. Rebound hammer manufacturer in the industry, more than 20 rebound hammer powerful guarantee for professional production techniques, the State of the technical specification for testing concrete strength by rebound method (JGJ/T23-2001) editing unit. Exclusive full support of the ultrasonic-rebound combined method of the technical specification for testing concrete strength (CECS02:2005) unit of our factory is the editing of this practice. Nationwide fast, thorough, meticulous service to allow customers more peace of mind.
Main technical parameters	Data-processing by: of the technical specification for inspection of concrete compressive strength by rebound method (JGJ/T23-2001) Store stock: 255 parts, or more than 5,000 area and associated data display: dual LCD screens: 128x64 3.5-inch 320x240 LCD and OLED power supply: host 6 or 3 AA batteries, ext 3.7V lithium battery Power consumption: host working ≤ 50mA (backlight off) standby Max 10mA dimensions: host 180x140x40 (mm) Communication distance: ≤ 20 m in open areas communication rate: 115200bps Size: 140x75x40 Calibration specification: the implementation of the technical specification for concrete rebound hammer test (JJG817-93) Nominal kinetic energy: 2.207J ± 0.100J Bomb hit spring stiffness: 785-40.0mm Pointer to length: 20.0 ± 0.2mm Pointer friction: 0.65 ± 0.15N Bomb hit radii of spherical surfaces: R25 ± 1.0 Bomb hit Spring length: 61.5 ± 0.3mm Bomb hit Rod shock length: 75.0 ± 0.3 mm Play hammer jump: scale '0' +1 The anvil on the calibration value: 80 ± 2 Chassis scale trough '100' line: rebound hammer detector positioning notched side of the cover plate overlap Value of testing consistency: ≦ ± 1 Operating temperature:-4 ° c to + 40 c

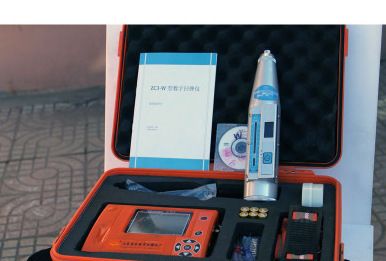

Machine composition	Wireless digital host rebound hammer extension, charger, section 6 3A battery, printer (optional), computer program installation discs, computer communication cable 1, grinding stones, manual 1, certificate of accessories, such as a
