Flexural test machine | KZJ-5000 cement for electric bending testing machine, bending machine

1+	2300 CNY (334.89USD)
3+	2200 CNY (320.33USD)
5+	2100 CNY (305.77USD)

add to cart

Product parameters:

Customized processing: no
Type: other
Brand: other
Model: KZJ-5000

KZJ-5000 electric bending machine

I, introduction

Apply glue sand bending strength test of cement is an essential instrument for other varieties of cement and other non-metal bending strength test of brittle materials can also be used in this instrument.

The second, main technical parameter

The biggest test of
Single lever 1000N
Double lever 5000N
Indicating accuracy ± 1%
Single lever effort than 10:1
Double lever effort than 50:1
Loading 50N/s

Third, the introduction

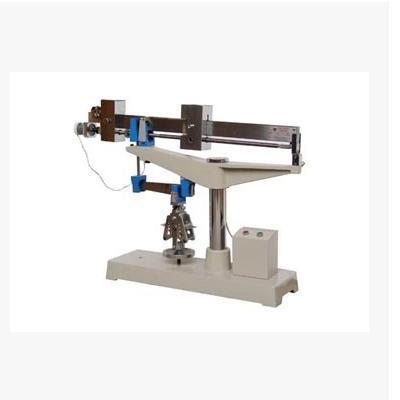

Electric resistance test machine consists of the following components (as shown in the figure):

1, made of 45 steel lever h, flat middle of the left end of the scale are breeding camels first focus set with knife c and d Fulcrum knife.

2, screw ⑸ parallel to the main scale, driven by the reversible motor to rotate, so swim camel services in moving along a main.

3, column ⒀ mainly plays a supporting role.

4, under the lever (23) is mainly focused on stress induced by the knife under key cutters (22) ⒅ try to force down on fixture over the flexural strength of cement. Fracture test, the primary levers positioned to the right of the needle hit the Microswitch ⑾ motor stops.

5, the next fixture with wheels ⒃ ⒄ up and down movements of the lifting screw.

Four, the installation

1, electric bending machine unpacking:

⑴, open the cover remove the plastic cover on the transport box.

B, remove the main and auxiliary lever, hosts and other parts, remove the wrapping paper, cleaning and dust removal.

2, electric bending testing machines installation environment requirements:

⑴, electric bending testing machine should be installed on a solid work surface, the indoor temperature is 17 degrees Celsius ∽ 25 ¡æ

B to avoid steam, corrosive gas intrusion.

C, installation of electric resistance test machine:

① Electric bending testing machine the principal on the Workbench, and adjusted the levels.

Second, the component is added to the tray lever, mounted on the suspension components and connects the Vice lever, fixed bezel on the knife block, connected to the power supply.

Five methods of operation and the use of rules

1, how to:

⑴ receiving power.

⑵, adjust the zero point (adjust the counterweight mound so You Tuo on '0', the main lever is horizontal).

C clear round on the fixture surface adhesion of different stuff put specimens in bending fixture and adjustment clamp the specimen clamp so that the main lever to produce an elevation (days this elevation according to the size of specimen storage and operational experience).

D press the Start button light is on (green) motor driven screw turns, swim mound moves loads, when added to a certain value, try to break the main lever positioned at the right end-pin to press micro switch motor stops, can be read on the main scale flexural strength values.

⑸ Press the trip button on the mound (7) promoting the tour on the mound back to '0' read the flexural strength values.

2, use the rule:

Off the power of test is completed, so swim mound reply to '0' (micro Rotary screw You Tuo back on '0').

Six, electric bending machine maintenance and troubleshooting;

1, electric bending machine maintenance;

⑴ Electric bending testing machine should not have corrosive gases and use strong magnetic field environment.

⑵ Electric bending testing machine with dust cover, cover after use, to prevent dust intrusion.

C electric bending testing machine knives and alcohol injection knife should be used regularly dip a wet heavy opening try to prevent blade contact of contaminated dust and grease.

2, General troubleshooting;

⑴ Start led does not light, check if the fuse is burnt out.

⑵ Electric bending testing machine main lever swing is not flexible, you should check whether the knife fell among v-shaped knife in the knife block.

⑶ swim mound button failure should check tour mound button portion of the screws loose, or a spring failed.

Seven electric bending test machine set list:

⑴ Electric bending testing machines, lever, and Vice-leveraged component group.

B protective cover.

① 1 a fuse c spare parts 1.

D product manual one.

⑸ a certificate.
