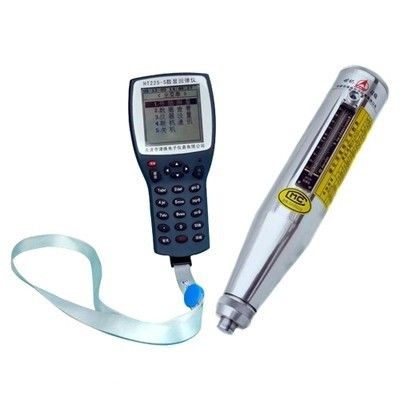

Portable Hammer | HT225-S digital voice rebound instrument HT225S digital Hammer

1+	4350 CNY (633.38USD)
3+	4330 CNY (630.46USD)
5+	4300 CNY (626.1USD)

add to cart

Product parameters:

Processing customization: No
Type: Communication detection instrument
Brand: Poly macro
Model: HT225-S

Description

In line with GB / T9138-1988 standards and JJG817-93 JGJ / T23-2011 and JGJ / T23-2011 technical specifications.

This product is suitable for the supervision company, the quality supervision spot test and the test center use.The scene automatic appraisal result, does not need the labor

Features

1) LCD large screen, high-definition 160 × 160. (Market products for the 160 × 128)

2) low energy consumption 2 5 batteries (market products for the 6 5 batteries)

3) sweet voice reported a few functions to improve the detection of staff efficiency (no voice products market function)

4) using USB communication interface, then the computer quickly export component data (market products for the RS232 interface)

5) Easy to operate, the software set the rebound value on the lower limit, you can automatically remove the abnormal value.

6) Hammer imported parts, mechanical parts of high precision, good accuracy, long service life than the market performance and excellent price.

Technical Parameters

Measuring range: 10-60Mpa

Nominal impact kinetic energy: 2.207J

Bouncing spring stiffness: 785N / cm

Hammer stroke: 75mm

Sampling indication consistency: ≤ ± 1 (digital output sampling value and the difference between the cursor readings)

Steel anvil rate

The average rebound value Rm: 80 ± 2

Power: 2, 1.5VVAAA alkaline batteries

Power consumption: sampling state ≤ 20mA (average current), idle state ≤ 20mA

Storage: 100 × 50 × 16 = 80,000 test results
