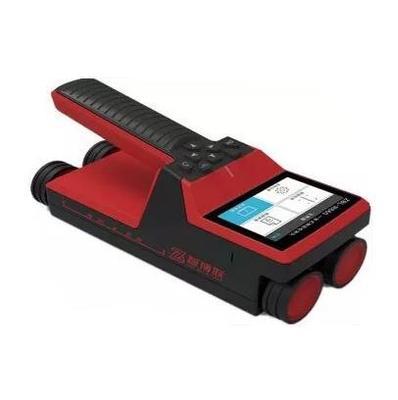

One-piece steel detection gauge ZBL-R660 steel position determination concrete reinforcing bar detector

One-piece steel detection gauge ZBL-R660 steel position determination concrete reinforcing bar detector

1+
24800 CNY (3610.95USD)
3+
24700 CNY (3596.39USD)
5+
24600 CNY (3581.83USD)

add to cart

Product parameters:

  • Customized processing: no
  • Brand: meet macros
  • Model: ZBL-R660
  • Range of measurement: φ 6~ φ 50


Host and the sensor is integrated
Areas of application: Bridge, tunnel, wall reinforcement in concrete structures such as the location, distribution and trend of steel, thickness of steel bar diameter detection; Also ferromagnetic and non-ferromagnetic media conductors (such as wires, pipelines) detection to detect the trend and distribution; Concrete structure construction quality acceptance inspection; To assess the safety and durability of the structure under construction; Assessment of old structures, while detection of reinforcement; Cables for floor or wall, plumbing pipes, such as distribution and trend detection.
Main configurations: One-piece steel instruments hosting
Host and the sensor is integrated, convenient operation, quick; Steel position, spacing, the thickness of the same screen displays useful information at a glance; 3.5-inch half-against a semi-permeable color LCD screen outdoors in bright light, and interior are clearly visible in the dark; Using multiple coil structure design, faster, more accurate, stronger resolution;
Function description:
Host and the sensor is integrated, convenient operation, quick;
Steel position, spacing, the thickness of the same screen displays useful information at a glance;
3.5-inch half-against a semi-permeable color LCD screen outdoors in bright light, and interior are clearly visible in the dark;
Using multiple coil structure design, faster, more accurate, stronger resolution;
Fit ' Tomohiro project testing and management system ' that can upload data in real time, realize the standardized management of testing;
Three dimensional imaging, can clearly reproduce the distribution of internal reinforcement to be measured;
Simplified Chinese, traditional Chinese, English, Japanese can easily switch.
Technical specification for detecting rebar in concrete-------JGJ/T152-2008
Specification modelZBL-R660ZBL-R800ZBL-R630AZBL-R620ZBL-R630
Thickness scope (mm) φ6~ φ50φ6~ φ50φ6~ φ50φ6~ φ50φ6~ φ50
Greatest range (mm) The first range1~ 803~ 983~ 986~ 906~ 90
The second range1~ 1803~ 1963~ 19610~ 18010~ 180
The thickness of
The maximum permissible error
±1 (mm) 1~ 593~ 773~ 776~ 776~ 77
±2 (mm) 50~ 7858~ 11858~ 11858~ 11858~ 118
±4 (mm) 70~ 18070~ 19670~ 19669~ 18069~ 180
Scope diameter measurement (mm) φ6~ φ50φ6~ φ50φ6~ φ50φ6~ φ32φ6~ φ32
Diameter measurement error (specification) ± 1± 1± 1± 1± 1
Normal mode√√√√√
Dense bar mode√√√√√
Profile mode√√√——√
Grid pattern√√√——√
Image mode√————————
Scanning rangeWithout bordersWithout bordersWithout bordersWithout bordersWithout borders
Data correction functions (space/thickness) √AutomaticManual——Manual
-Data transmissionWireless/USBUSB storageUSBUSBUSB
Display320x240160x128160x128160x128160x128
Power supply modeBuilt-in lithium batteryBuilt-in rechargeable batteryBuilt-in rechargeable batteryDC:9V 5th batteryBuilt-in rechargeable battery
Host size (mm) 240x93x110212x134x50212x135x52190x135x52190x135x52
Net weight (kg) 0.670.90.90.70.9
Remote data management systemButtButtButtButtButt
ProbeOneDual-headDual-headPaths with detachable probeSingle probe
