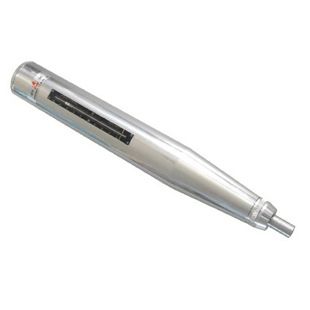

Description

(JGJ / T23-2001) This product is suitable for testing high-rise building components, bridges and hoop components (plates, beams, columns,

Bridge) strength.

Features

1) The center guide rod imported materials, high precision, wear resistance;

2) shell with super-hard aluminum, to avoid damage to the scene operation of equipment to extend the service life;

3) The pointer slider using external coil structure, both to facilitate the friction adjustment, but also to ensure that the pointer shaft and pointer slider friction evenly,

To ensure the accuracy of the instrument. Relative peer quality and cheap products, high precision, long service life.

Technical Parameters

Measuring range: 50-80Mpa

Nominal impact kinetic energy: 9.8 J (1 Kgf.m)

Hammer stroke: 140mm

Static friction of the pointer slider: 0.5N ± 08N

Steel anvil rate of the average rebound value Rm: 83 ± 2

Bouncing spring stiffness: 10N / cm

Overall dimensions: Φ65 * 486mm

Weight: ≈ 3.5Kg
