KON-FK (b) monitoring of crack width | Width | Width gauge | Observations can be tilted to catch

8800 CNY (1281.31USD)

add to cart

Product parameters:

Customized processing: no
Brand: snow color
Model: KON-FK (b)
Measuring range: 0~ 10MM

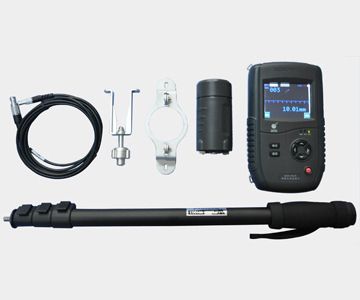

KON-FK (b) monitor for crack width

1. Product features

﹡National patent, patent number: ZL2010 3 0186612.7

﹡Domestic initiative simultaneously with real-time detection of the crack width value and long-term monitoring functions;

﹡ Intelligent interpretation of oblique cracks must be vertical to the screen is not required when the automatic interpretation, automatic identification of diagonal strike, and accurately interpret the direction perpendicular to the slope

True width value;

© ~ Apart from the automatic interpretation, and also artificial interpretation of crack width value, manually move the cursor defines the crack boundary, scale is displayed on the screen, display value of crack width and crack

Stitch images and scale With appropriate zoom;

﹡ Store data and images at the same time, u disk to export data and images, and has the ability to view, delete function;

Crack width cm value of long-term monitoring in real time, you can set the total length and sampling intervals for monitoring;

© ~ Convenient operation: touch screen and button operation in two ways;

© ~ Powerful data analysis and processing software, image interpretation can crack, you can analyze treatment data, the output image files, and EXCEL The report,

Print image.

2. Product use

﹡For surface crack width value of real-time automatic measuring and crack crack crack width values in the process of real-time monitoring, long-term monitoring in real time when no value

Keep, Automatic interpretation of both Storage of data.

3. technical specifications

﹡Measurement of crack width range: 0~ 10mm;

﹡ Measurement accuracy: 0.01mm;

﹡ Reading accuracy: 0.001mm;

﹡ Magnification: digital 60Times;

﹡ Built-in rechargeable lithium-ion battery, can work continuously 8For an hour;
