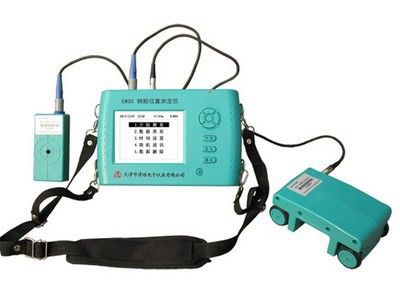

GW-50 + reinforced scanners | steel position detector | rebar detector

6500 CNY (946.42USD)

Product parameters:

Product applicable standards

GB50204-2002"Code for Acceptance of Construction Quality of Reinforced Concrete Structures"

GB50010-2002"Concrete structure design specification"

GB / T50344-2004"Technical standard for building structure detection"

JGJ / T152-2008"Reinforced concrete detection technology specification"

DB11 / T365-2006"Electromagnetic induction method to detect the thickness of the protective layer of steel and steel diameter technical regulations"

Product Usage

Detection of concrete protective layer thickness

Detection of reinforced concrete components within the location, spacing steel, steel distribution

Estimated bar diameter

Cable, plumbing pipe detection

Product Features

★ Detection depth of 180 mm

★ Single integrated probe, the test does not need to be replaced

★ Backlit display, in low light conditions can be used normally

★ Machine inside and outside the software function is complete, and the computer connection can automatically print the report

Product environmental requirements

Electromagnetic interference: no strong alternating electromagnetic field

The air does not contain corrosive gases

Should not have a greater vibration and shock

LCD screen to avoid direct sunlight

Main performance indicators

Serial number	Features //model		GW50 +
1	Range of use of steel bar diameter Mm		Φ6 -Φ50
2	Maximum Allowable Error of Bar Diameter		≤ ±1
3	Protection layer thickness measurement range
	First range Mm		6 - 90
	Second range Mm		7-180
4	Maximum Thickness Indication of Protective Layer of Reinforcing Bar
	First range Mm	Second range Mm
	6 - 59	7 - 79	≤ ±1
	60 - 69	80 - 119	≤ ±2
	70 -90	120 - 180	≤ ±4
5	Normal working environment requirements
	Working temperature ℃		-10 - +40
	Relative humidity RH		<90%
6	Power supply		6Section 5No. alkaline batteries, power supply time is greater than 30hour

Product standard configuration

This field places the attachment (Instructions, software CD, strap, probe and transmission lines, etc.) photos
