Product applicable standards

national standards of People's Republic of China GB 50344-2004"Technical standard for building structure detection"

JGJ / T152-2008"Reinforced concrete detection technology specification"

Product Usage

Reinforced concrete in the structure of the steel makes the effective cross-sectional area decreases, the volume increases, resulting in concrete expansion, peeling, steel and concrete bond strength and bearing capacity of a direct impact on the structure of concrete safety and durability Therefore, it is one of the important contents of the appraisal of the existing building structure safety for the detection of the corrosion degree of the steel bar in the concrete structure.

Product Features

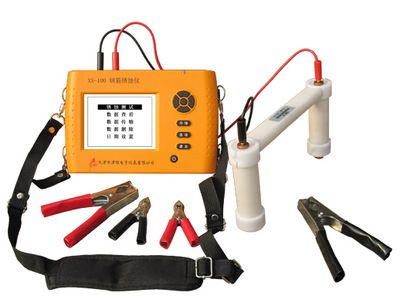

1, XS-100Reinforcement corrosion detector, the use of polarized electrode principle, through the copper /Copper sulfate reference electrode to measure the surface potential of concrete, according to the corrosion of steel production potential or the size of the potential gradient to determine whether the degree of corrosion or corrosion of steel bars.

2, Measuring the surface potential of concrete in order to achieve non-destructive testing of concrete reinforcement corrosion degree.

3, Store the potential value of the corresponding location of each survey area, and use the graph to show and transfer the data to the host computer software, and operate on it.

Main performance indicators

Product standard configuration

Host, signal transmission line, gradient electrode, USB Data transmission line, manual, CD-ROM
