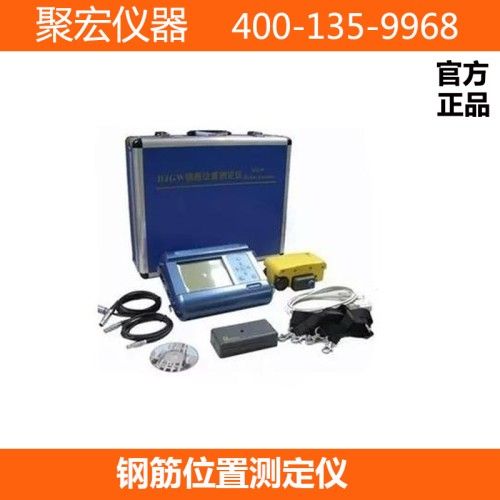

Authentic Chinese Dragon | Steel position Analyzer | DJGW-1A/-2A/DJLC-A floor slab thickness gauge Jin

Authentic Chinese Dragon | Steel position Analyzer | DJGW-1A/-2A/DJLC-A floor slab thickness gauge Jin

6600 CNY (960.98USD)

add to cart

Product parameters:

  • Customized processing: no
  • Type: handheld thickness gauges
  • Brand: domestic
  • Model: DJGW-1A/-2A
  • Measuring range: 6-50;
  • Display: LCD display
  • Power supply: 9VDC (6 5# batteries) charging/optional
  • Overall dimensions: 220x180x80


Steel position Tester, Hualong DJGW-1A Earth reinforcement position Analyzer technical parameters:

1, the application range: 6-50;
2, protective layer detection accuracy: 6-79mm, error ≤ ± 1mm; 80-119mm, error ≤ ± 2mm; 120-190mm, error ≤ ± 4mm;
3, diameter measuring accuracy: error ≤ ± 1mm (specification correctly);
4, LCD screens: 160x128; Power supply: 9VDC (6 5# batteries) charging/optional;
5, operating temperature: 0o-40 c; Operating humidity: ﹤ 85%;;
6, host size: 220x180x80 (mm); Operating humidity: ﹤ 85%;
Weight: 0.7kg; Size: 220x180x80 (mm) probe: 163x76x40 (mm), probe: 134x56x38 (mm).
Beijing Hua long DJGW-2A Earth reinforcement position detector technical parameters:

ü Scope of application: φ6—φ50;

ü Layer of detection accuracy: 6-190mm, error ≤ ± 1mm; 80-119mm, error ≤ ± 2mm; 120-190mm, error ≤ ± 4mm;

ü Diameter detection accuracy: Error ≤ ± 1 specification (specification correctly);

ü Bars positioning accuracy: Error ≤ ± 3mm;

ü LD Display: 124×80 (mm ) ; Power supply: 9VDC60Section 5# Battery);

ü Working temperature:- 10o—40℃; Working humidity: ﹤ 90%;

ü Weight: 0.7kg ; Size: 220×180×80 (mm)

ü Grid scanning range: 10m×10m

The standard probe: 110×55×28 (mm ) ; Range cars: 135×75×53 (mm) .
