Tilt Micromanometer | YYT-2000B |

one. use

Tilting micromanometer YYT-2000B is mainly used for measuring the surface pressure and differential pressure of micro-pressure gas which is insoluble in ethanol in environmental protection, scientific research, teaching and industrial and agricultural production, etc. It can measure positive pressure, negative pressure and differential pressure. The instrument is suitable for use in conditions where the ambient air temperature is 10 ~ 30 ℃, the relative humidity is not more than 80%, and the measured gas is not corrosive to brass and steel.

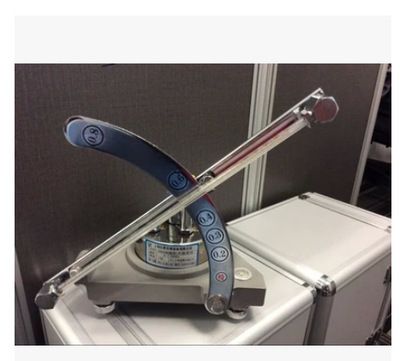

two, Tilt micro-pressure | YYT-2000B | inclined bar micro-pressure characteristics and structure: The tilting micromanometer is a pressure gauge which can change the inclination angle of the measuring tube. It is mainly composed of a base, a medium container, a measuring tube, an arc stent, a zero position regulator, a multi-way valve and a water level. A high-level screw, the measurement tube from the colorless and transparent glass tube parts, in its length direction, 圴 uniform engraved 255mm or more mm graduation grid, the measuring tube can adjust the inclination angle of the curved bracket back and forth in the curved stent is marked with 5 files tilt constant K (0.2, 0.3, 0.4, 0.6, 0.8), for measuring Five-range pressure range of gas.

three, Tilt Micromanometer | YYT-2000B |
