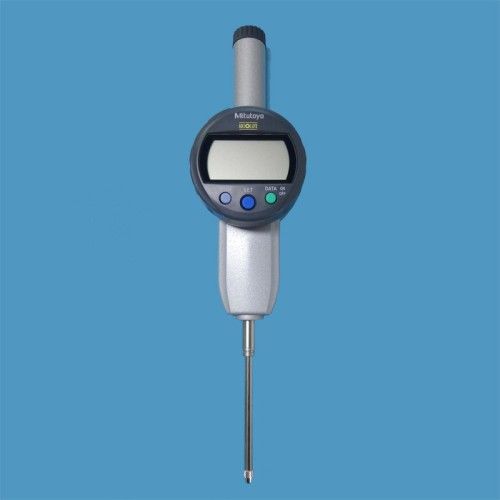

Japan sanfeng MITUTOYO Digital micrometer

IDC Series Digimatic Micrometer (-Multifunctional standard type)
New IDC Series digital dial indicator reading ,To avoid measuring errors occurred during reading .Its true origin type linear encoder can always keep before the batteries setting the origin trajectory .Boot can be displayed on a large LCD display axis from the origin of the actual location .Whenever you power on ,Measurement can be carried out without having to preset the absolute origin.
Features:
Small standard dial indicator
Large, easy to read LCD screen
By zero /Absolute zero point button in any spindle position display zero setting, or to return to the absolute origin location and display the distance to the origin of the true location
By adjusting the spindles /Mobile is /Negative counts
No limit response speed to avoid overspeed error
IDC Micrometer dial can be rotated 330 °,Easily from the desired angle for reading
Measured data are available through SPC Optional cables output to the external data processor
Technical parameters:
Display: LCD display
Function: set the origin, zero, power on /Clearance, inch /Metric conversion, SPC Data output, counting direction conversion GO/±NG Judge SR44 (1Generic classifier)
Battery life: approximately continuous use 5000Hour
Sleeve diameter: 8mm(ISO/JIS Type) or 3/8″(ANSI/AGD Type)
PIN: M2.5×0.45Carbide ball of thread (ISO/JIS ) Or with #4-48UNF Threads (inch /Metric type) steel ball
Warning: low-voltage, blade polluted overflow error, error tolerance limits set
Dust /Water protection: reach IP42Protection standard
Operating temperature: 0℃To 40℃

Performance parameter:

Inch series /-Metric
