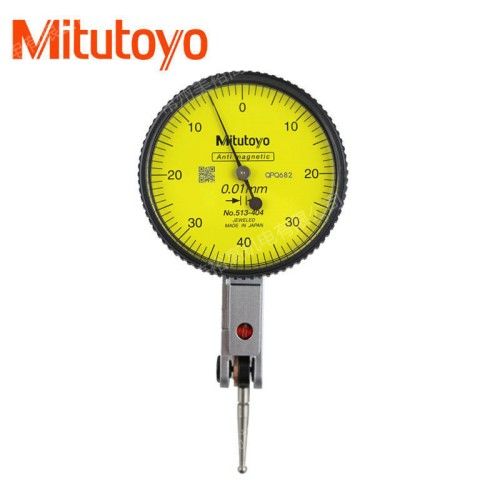

Japan Mitutoyo 513-404C 513-404E Lever Indicator Dial Indicator

Japan Mitutoyo 513-404C 513-404E Lever Indicator Dial Indicator

730 CNY (106.29USD)

add to cart

Product parameters:

  • Brand: Mitutoyo / Mitutoyo
  • Model Number: 513-404E / C
  • Type: Precision gauge
  • Measuring range: 0-40-0
  • Processing customization: No
  • Net weight: 0.6
  • Specifications: 513-404C, 513-404E


lever Dial indicator (513series -Horizontal type)

Features:

  • Can be accurate and convenient measurement of narrow or concave objects, and the dial gauge is difficult to measure the size of internal and external diameter
  • Using non-clutch structure to achieve automatic rotation of the measurement direction
  • Due to the base with gemstone base and with OType ring 'crystal ' Table cover design, this dial gauge can be waterproof, dustproof
  • Anti-glare crystal surface with anti-scratch coating
  • Due to the installation of the jewel bearing, it is highly sensitive and responsive
  • Standard Cemented Carbide styli

Performance parameters

Graduation value

Measuring range

Item (main body)

Item (Basic package)

Item (Full set)

Dial reading value

Precision

Measuring force

0.01mm

0.5 mm

513-424E

513-424A

513-424T

0-25-0

5um

0.3Nthe following

513-414E

513-414A

513-414T

0-25-0

10um

0.2Nthe following

513-466E

-

-

0-25-0

5um

0.3Nthe following

0.8 mm

513-404E

513-404C

513-404T

0-40-0

8um

0.3Nthe following

513-464E

-

-

0-40-0

8um

0.3Nthe following

1 mm

513-415E

513-415A

513-415T

0-50-0

10um

0.2Nthe following

1.5 mm

513-426E

513-426A

-

0-25-0

8um

0.4Nthe following

0.002 mm

0.2 mm

513-405E

513-405A

513-405T

0-100-0

3um

0.3Nthe following

513-465E

-

-

0-100-0

3um

0.3Nthe following

0.6 mm

513-425E

513-425A

-

0-100-0

6um

0.4Nthe following

0.001 mm

0.14 mm

513-401E

-

-

0-70-0

3um

0.3Nthe following
