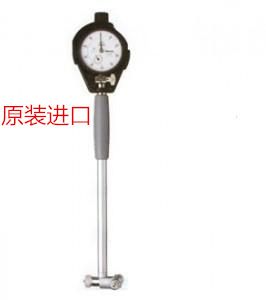

Japan Mitutoyo Mitutoyo 511-175 diameter dial indicator 100-160mm | Scale 0.01mm

2380 CNY (346.54USD)

Product parameters:

Processing customization: No
Brand: Mitutoyo / Mitutoyo
Model: 511-175
Measuring range: 100-160
Accuracy: 0.01mm

Inside diameter table511series)

Mitutoyo has a full range of diameter table for the user to choose , 160MM They are all equipped with replaceable measuring sticks and accessories for precision inner diameter measurements ,Some large diameter diameters come with a dedicated self-aligning device for more accurate measurement of the inside diameter

Features:

The most user-friendly diameter table

Stylus with carbide head is durable

The dial indicator is completely protected by a rugged protective cover

Extended option allows for deep hole measurement

Can also use the economic diameter table set

Metric type

Measuring range	Item	Measuring device		Measure the depth	Graduation value
Measuring range	Item	Inside diameter table	Dial indicator	Measure the depth	Graduation value
50-100 mm	511-173	511-128	2046SB	150 mm	0.01mm
50-150 mm	511-174	511-132		150 mm	0.01mm
100-160 mm	511-175	511-129		150 mm	0.01mm
