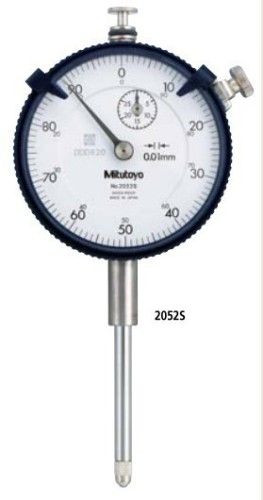

Original Japanese Mitutoyo Mitutoyo 2052S dial indicator
Product parameters:
- Brand: Mitutoyo / Mitutoyo
- Model: 2052S
- Type: Dial indicator
- Accuracy: repeat accuracy of 5 microns
- Measuring range: 30mm
Features:
1, 2Series pointer dial indicator is the most common and most widely used Mitutoyo indicator pointer dial indicator one
2, In addition to Sampoong has also introduced a suitable for processing in the measurement process 'Single turn ' Pointer dial indicator
3, Its pointer can be a single turn to show the entire spindle range
4, Effectively preventing the pointer to 2-1/2The measurement error caused by the turn
Performance parameters:
Metric: ISO / JIS type
Graduation value | Item | Measuring range (measuring range /Each lap trip) | Precision | Repeatability | Dial reading value | Measuring force | ||||
With ears back cover | Flat back cover | The whole | return | 1/10stroke | 1Circle travel | |||||
0.01mm | 2052S | 2052SB | 30mm (1mm) | ± 25μm | / RTI & gt; | Mu] m | ± 18μm | Mu] m | 0-100 | 2.5Nthe following |
0.01mm | 2052S-19 | 2052SB-19 | 30mm (1mm) | ± 25μm | / RTI & gt; | Mu] m | ± 18μm | Mu] m | 0-100 | 2.5Nthe following |
