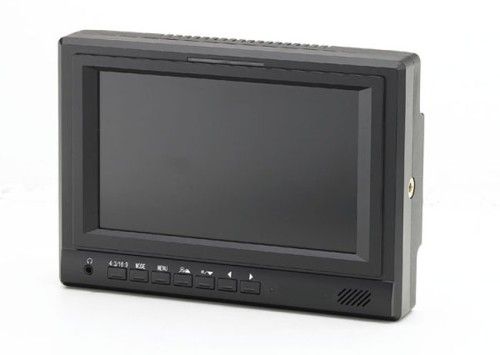

All-in-one On-camera monitor, available with both HD-SDI and HDMI;
Multi-functional knobs and buttons for user-friendly menu navigation;
Advanced features:
Embedded audio(SDI), Aspect ratio, Over scan, Under scan, Safe Markers, Color Temperature settings, User presets, TALLY, Built-in speaker, headphone and more.
Specification:
Resolution 800× 480 pixel0 pixel0 pixel
Brightness 450 CD/m² Optionaltionaltional
Contrast 500: 1
Aspect Ratio 16: 9/4: 3(adjustable)
Color 16.7M-Ture color
Backlight LED
Viewing Angle 140° , 120° (H, V)g; (H, V)g; (H, V)
Input Voltage DC6V-14V± 15%smn; 15%smn; 15%
Input signal SDI, HDMI, COMPONET, VIDEO, AUDIO
Output signal SDI, COMPONET, VIDEO, AUDIO
Special function TALLY, Image Multiplication, Image Freeze
Power Consumption ≤ 10W 10W 10W
Working temperature -30º C~80º CC~80º Cm; CC~80º C
Size 205L × 145W × 51H(mm)imes; 51H(mm)imes; 51H(mm)
Inputs & Functionstionstions
Model /Functions Remark
Composite in BNC× 1line; 1line; 1line
SD-SDI in BNC× 1line; 1line; 1line
HD-SDI inBNC× 1line; 1line; 1line
HDMI in × 1line; 1line; 1line
SDI embedded audio PPM / UV
SD-SDI out BNC× 1line; 1line; 1line
HD-SDI out BNC× 1line; 1line; 1line
TALLY Red / green two color
