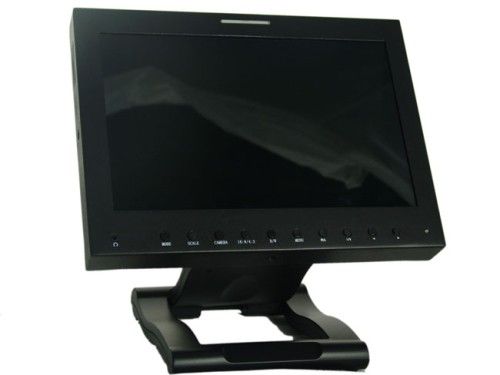

12.1' 16: 9 PRO-photography LCD HD MonitorMonitor
Inputs: 3G/HD/SD-SDI, HDMI, Component, Compositeaa
16: 9&4: 3 adjustable buttonuttonutton
Screen Type TFT LCD
Resolution 1280*800
Maximum Resolution support 1920*1440
DOT Pitch 0.05(W) x 0.15 (H)
Screen Ratio 16: 09
Brightness 200CD/m2
Contrast Ratio 500: 1
Response Time 10ms
Viewing Angle 40/40° Deg; (L/R)(L/R)(L/R)
10° /30° (U/D)eg; (U/D)eg; (U/D)
Input Voltage DC 6~24V
Power Consumption ≤ 6W; 6W; 6W
Unit Size 344.8L × 228.2W × 43H(mm)imes; 43H(mm)imes; 43H(mm)
Unit Weight 2.5kgs
Backlight LED
Input Signal HDMI, YPbPr, Video, Audio/3G/SD/HD-SDI
Working Temperature -20~50ºCordm;Cordm;C
Storage Temperature -30~65ºCordm;Cordm;C
Input Formats & Functionctionction
Model AL121
Video Input CVBS √√radic;√
Y/Pb/Pr √√radic;√
HDMI √√radic;√
3G/SD/HD-SDI √√radic;√
Audio Input √√radic;√
Audio Monitoring √√radic;√
Video output CVBS √√radic;√
(Y/Pb/Pr) √√radic;√
3G/SD/HD-SDI √√radic;√
Optional
TALLY √√radic;√
Feature & Functionnctionction
1. One Key Adjustment √√radic;√
2. Color Temperature Setting √√radic;√
3. AC & DC Power Supply √ply √radic;ply √
4. Safe Frame Setting √√radic;√
5. Front earphone jack √√radic;√
6. Marker background&scale&frame finder: (Off, 96%, 93%, 90%, 85%) √%, 85%) √radic;%, 85%) √
7. Image 16: 9/4: 3 √√radic;√
8. Peaking Focus Assist(peaking filter) √√radic;√
9. 5D II camera Mode √√radic;√
10. Check Field: (Mono, Red, Green, Blue, Off) √√radic;√
