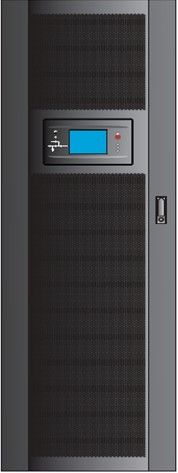

Rb60 20-60kVA Internal Battery Modular UPS

Rb60 20-60kVA Internal Battery Modular UPS

1800 USD

add to cart
Model NO. RB60 Series
Type Modular UPS
Application Communication
Standby Time Standard Machine
Output Capacity Medium Type
Brand Invt
Inverter Three-Level
Output Pf 0.9
Power Range 20-60kVA
Specification CE
HS Code 8504402000
Phase Three Phase
Protection Overvoltage
Classification Lighting/Power
Standby UPS Sine Wave Output UPS
Equipment Mode Centralized Model
Design Hot Swappable
Rectifier Vienna-Like
Inside Battery Group 4 Groups Max
Trademark INVT
Origin Shenzhen
RB60 Series Product
20 KVA~60 KVA
Both Power module and Battery unit are designed to be hot swappable
Vienna-like rectifier and three-level inverter
Major application: Server

Capacity
20~60kva

Input voltage
380v/400v/415v(line to line)

Input voltage window
-40% ~ +25%

Frequency window
40 ~ 70Hz

Battery voltage
±240VDCn;240VDCn;240VDC

Charger power
20%*Power

Power factor & Crest factoractoractor
95%@normal ; 98%@ECO mode
3:1

System
95%@normal ; 98%@ECO mode

Voltage THD
<2%(linear load) , <%5(non linear load)r load)

Overload capacity (Bypass)
110% load, long time operation
125%< load< 130%, 1 hour 1 hour
130%< load< 150%, 6 minutesminutes
﹥1000% ,last for more than 100ms00ms

Overload capacity (inverter)
125% load, 1h
125% load, 10min
﹥150% load, 200ms00ms
