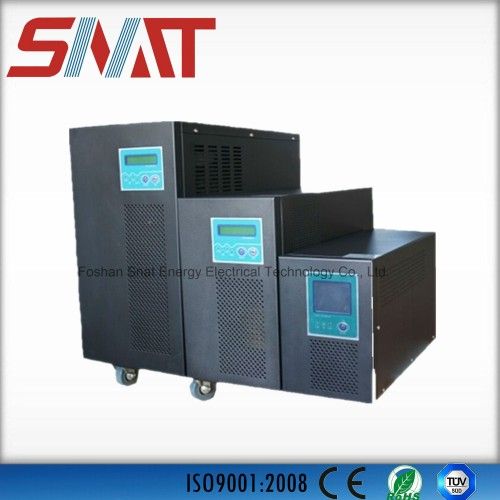

Power Frequency off Grid Solar Inverter

799-3569 USD

Model NO.	SNI-16 series
Output Power	7kw to 30kw
Brand	Snat
Power Source	Solar Power
Brand Name	Snat
Sample Order	Accept
Waveform	Pure Sine Wave
Application	Widely Use
Specification	CE; ISO9001
HS Code	8504403090
Phase	Single
Certification	CE, ISO9001
Type	DC/AC Inverters
Nature of Wave String	Sine Wave Inverter
OEM/ODM	Accept
Frequency	50Hz
Accessory	Controller, Inverter, Battery.Power System
Trademark	SNAT
Origin	Foshan Guangdong

Power frequency off grid solar inverter( Single phase, High power, Pure sine wave) introduction:
This series pure sine wave inverter power supply is designed special for solar power system. It is a conversion device transform solar power to unterruptible and pure AC electric energy. It provides continuous AC power what can be used for household, computer and other electrical equipments. It also can prevent public power from all kinds of distortion, such as the voltage drop, surge voltage, peak voltage and radio frequency interference.
Working mode:
Apply to DC voltage 94V to 280V
AC voltage is single phase 110V/220V
1. Mains supply switch complementary work mode
1﹥ When solar panel battery voltage is normal, inverter transform DC electric energy supplied by battery or solar panel to pure AC electric energy to power the back-end loads; When DC voltage is abnormal, inverter will automaticly switch to mains supply work mode.ode.
2﹥When the battery voltage is normal, ac mains by static transform switch, and switch to dc inverter output;This conversion process is very short, less than about 4 ms, ensure uninterrupted power supply;(also can be customized ac mains main type)type)
2.Inverter work mode only:
Inverter only make DC electric of solar panel or solar battery transform to AC electric to power loads
Feature:
1. Completely isolated inverter technology, output real pure sine wave AC voltage with no noise
2. Take advanced SPWM technology, waveform pure
3. The unique dynamic current loop control technology to ensure inverter reliable operation
4. Load capacity is strong and can support the computer turn on with full load
5. High power bypass swith, power supply can be bypass when overload
6. With protection function for input overvoltage, undervoltage, output overvoltage, undervoltage, overtemperature, short circuit
7. LED/LCD display control panel, running status is clear at a glance
Specification Parameter

Power		7KW~30KW
DC Input	Rated voltage	110V/220V (customization DC96V to DC300V)
DC Input	Voltage range	110VDC(94.5V to 160V)/280V(189V to 280V) or others ±20%usmn;20%usmn;20%
AC Input	Phases	Single
	Frequency	50Hz±5%lusmn;5%lusmn;5%
	Voltage range	220Vac±20%usmn;20%usmn;20%
Inverter output	Rated capacity	7KW~30KW
	Rated voltage	Single phase 220V
	Voltage precision	Single phase 220V±2%lusmn;2%lusmn;2%
	Frequency	50Hz±1%lusmn;1%lusmn;1%
	Waveform distortion factor	<3%
	Dynamic response	5% (0~100% load)
	Peak factor	3:1
	Power factor	0.8
	Overload capacity	Overload change to bypass mode
	Inverter efficiency	90% (80% load)
Continuous operation time		Operation for long time
Alarm		Buzzer or LED indicator light flash
Switch time	AC and DC	<5ms;5ms
Insulating strength		1500VAC 1min (input & output)tput)tput)
Noise		45dB (within 1m)
Cooling mode		Fan cooling

Warranty:
Quality warranty for 1 year; parts will be shipped free during warranty period.
Delivery time:
Stick to contract.
Concurrently engaged in relative solar power system products such as solar panel, gel battery, sealed lead acid battery, Combiner box, etc
Special sockets for different requirements
