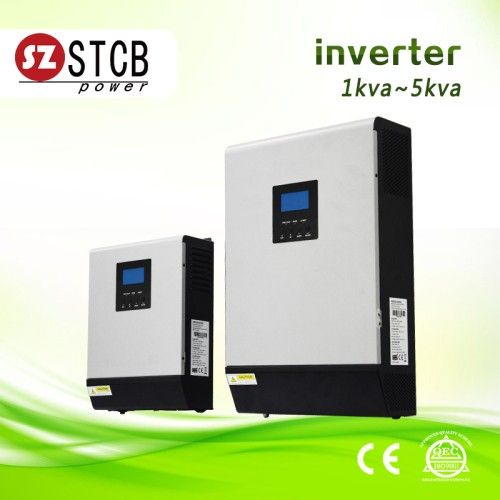

Home Solar Inverter 1kVA with 25A MPPT Charger
| Model NO. | PH20 1KVA |
| Phase | Single |
| Certification | CE, ISO9001 |
| Type | DC/AC Inverters |
| Nature of Wave String | Sine Wave Inverter |
| Peak Power | 2000va |
| DC Input | 24V/48V |
| Waveform | Pure Sine Wave |
| Power Factor | 0.99 |
| Trademark | STCB |
| Origin | Guangzhou Shenzhen |
| Nature of Source Flow | Passive inverter |
| Output Power | 501 - 1000W |
| Brand | Stcb |
| Power Source | Solar Power and Utility Power |
| Power Capacity | 800W |
| AC Input | 220V |
| Charge Current | 20A |
| Transfer Time | 10ms |
| Warrent | 1 Year |
| Specification | CE |
| HS Code | 8504403090 |
Home solar inverter 1kva with 25a mppt charger
Main Features:
1. LCD digital display show voltage, load and battery information in real time.
2. Peak power is three times of rated power.
3. Suitable for allelectrical equipments such as air conditioner, motor door and so on.
4. Pure sine wave output, available for sensitive load.
5. 4-step progressive charging, 7 battery type selector.
6. Fast and powerful charger with 35A and 70A/90A.
7. Accept generator's energy output.
8. High power factor 0.9, low power consumption.
9. Automatically transfer between battery and line modes.
10. Microprocessor control guarantees high reliability.
11. Remote control function.
12. Protection against: Over load, over temperature, over charging, low battery
Specifications:
Our Services
1. OEM&ODM services acceptable.table.able.
2. 1% pcb board provided .
3. Lots of cooperated agent for shipping by sea or by air.
4. 1year warrenty , if it is quality problem , we will provide the parts for free .
FAQ
Q1: Why you should choose us?
---16 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,UL,and so on
Our products could pass different labor testing according to different countries' requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be
developed within 45-60days.
Main Features:
1. LCD digital display show voltage, load and battery information in real time.
2. Peak power is three times of rated power.
3. Suitable for allelectrical equipments such as air conditioner, motor door and so on.
4. Pure sine wave output, available for sensitive load.
5. 4-step progressive charging, 7 battery type selector.
6. Fast and powerful charger with 35A and 70A/90A.
7. Accept generator's energy output.
8. High power factor 0.9, low power consumption.
9. Automatically transfer between battery and line modes.
10. Microprocessor control guarantees high reliability.
11. Remote control function.
12. Protection against: Over load, over temperature, over charging, low battery
Specifications:
| Model No. | PL18-1000 | PL18-1500 | PL18-2000 | PL18-3000 | PL18-4000 | PL18-5000 | PL18-6000 |
| Nominal Power | 1000W | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W |
| AC Input | |||||||
| Phase & waveformeformeform | Single phase & Pure Sine Wave Wave Wave | ||||||
| Voltage | 110/120/130VAC OR 220/230/240VAC | ||||||
| Acceptable Voltage | 95-126VAC OR 194-253VAC±4%lusmn;4%lusmn;4% | ||||||
| Line Low Transfer | 85VAC±4% OR 184VAC ±4%4VAC ±4%usmn;4%4VAC ±4% | ||||||
| Line Low Return | 95VAC±4% OR 194VAC ±4%4VAC ±4%usmn;4%4VAC ±4% | ||||||
| Line high Transfer | 136VAC±4%/263VAC±4%63VAC±4%usmn;4%63VAC±4% | ||||||
| Line high Return | 126VAC±4%/253VAC±4%53VAC±4%usmn;4%53VAC±4% | ||||||
| Frequency | 50Hz:41-54Hz or 60Hz:51-64Hz (auto sensing) | ||||||
| Output | |||||||
| Phase & waveformeformeform | Single phase & Pure Sine Wave (bypass mode sync to input)nput)nput) | ||||||
| Voltage | 110/120/130VAC OR 220/230/240VAC±10%rmsn;10%rmsn;10%rms (bypass mode sync to input) | ||||||
| Frequency | 50Hz/60Hz±0.3Hz (bypass mode sync to input)o input)o input) | ||||||
| Peak Power | 3 times of rating power | ||||||
| Short Circuit Protection | Yes, shutdown after 10ms | ||||||
| Power Factor | 0.9-1.0 | ||||||
| DC Input | |||||||
| Battery Voltage | 12VDC OR 24VDC OR 48VDC | ||||||
| Minimum Start Voltage | 10V for 12V, 20V for 24V, 40V for 48V | ||||||
| Low Battery Alarm | 10.5V for 12V, 21V for 24V, 42V for 48V | ||||||
| Low Battery Transfer | 10V for 12V, 20V for 24V, 40V for 48V | ||||||
| High Voltage Alarm | 16V for 12V, 32V for 24V, 64V for 48V | ||||||
| Max Charging Current | 20A/35A/50A/75A/90A(According to the inverter model) | ||||||
| Transfer Efficiency | |||||||
| Line Mode | >96% | ||||||
| Battery Mode | >85% | ||||||
| System Parameter | |||||||
| power saver | load <= 25 Watts(Enabled on "P/S auto"setting of Remote control)emote control) | ||||||
| Audible Alarm | Sounding when the heat sink's tem is over 105ºCand shutdown after 30 seconds.conds.conds. | ||||||
| Over load Protections | 110% | ||||||
| Protections | low battery,over charging,over temp,over load | ||||||
| Communications | RS-232/USB/SNMP(custom-made) | ||||||
| Environmental | |||||||
| Operating Environment | 0-40ºC,0-90%RH(non-condensing)nsing)nsing) | ||||||
| Audible Noise | <60dB60dB | ||||||
| Physical | |||||||
| Net Weight(KG) | 15 | 17.5 | 19.5 | 25 | 35.5 | 39 | 47.5 |
| Dimension, L X W X H(mm) | 470*223*185 | 650*223*185 | |||||
| * Product specifications are subject to change without further notice | |||||||
Our Services
1. OEM&ODM services acceptable.table.able.
2. 1% pcb board provided .
3. Lots of cooperated agent for shipping by sea or by air.
4. 1year warrenty , if it is quality problem , we will provide the parts for free .
FAQ
Q1: Why you should choose us?
---16 years UPS experiences
---Professional team for both oversea and domestic market
--UPS provider of SCO meeting 2015 and Shanghai-Kunming high-speed railway project
---Qualified product plus competitable prices
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 12-24 months warranty since the delivery date and free maintenance /
replacement during warranty period.
Q3: What kind of certification you have?
---ISO9000, CE,ROHS,UL,and so on
Our products could pass different labor testing according to different countries' requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days; customized products could be
developed within 45-60days.
