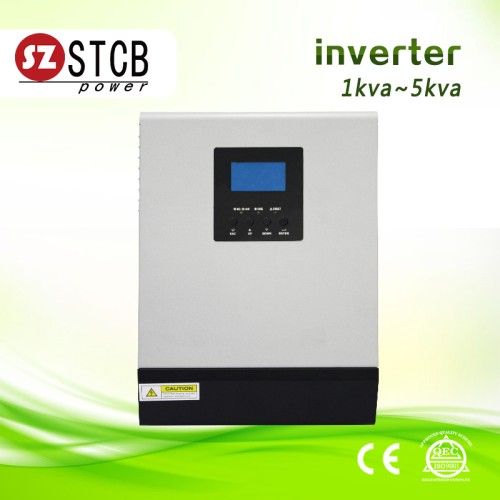

High Performance Frequecny Inverter Solar 1kVA 24V 48V DC

280-300 USD

Model NO.	PH 1KVA
Phase	Single
Certification	CE, ISO9001
Type	DC/AC Inverters
Nature of Wave String	Sine Wave Inverter
Peak Power	2 Times of Rated Power
DC Input	24V/48V
Waveform	Pure Sine Wave
Power Factor	0.99
Trademark	STCB
Origin	Guangzhou Shenzhen
Nature of Source Flow	Passive inverter
Output Power	501 - 1000W
Brand	Stcb
Power Source	Solar Power and Utility Power
Power Capacity	1000va/800W
AC Input	220V
Charge Current	25A
Transfer Time	10ms
Warrent	1 Year
Specification	CE
HS Code	8504403090

High performance frequecny inverter solar 1kva 24v 48v dc
Main Features:
1. LCD digital display show voltage, load and battery information in real time.
2. Peak power is three times of rated power.
3. Suitable for allelectrical equipments such as air conditioner, motor door and so on.
4. Pure sine wave output, available for sensitive load.
5. 4-step progressive charging, 7 battery type selector.
6. Fast and powerful charger with 35A and 70A/90A.
7. Accept generator's energy output.
8. High power factor 0.9, low power consumption.
9. Automatically transfer between battery and line modes.
10. Microprocessor control guarantees high reliability.
11. Remote control function.
12. Protection against: Over load, over temperature, over charging, low battery
Specifications:

Model No.	PL18-1000	PL18-1500	PL18-2000	PL18-3000	PL18-4000	PL18-5000	PL18-6000
Nominal Power	1000W	1500W	2000W	3000W	4000W	5000W	6000W
AC Input
Phase & waveformeformeform	Single phase & Pure Sine Wave Wave Wave
Voltage	110/120/130VAC OR 220/230/240VAC
Acceptable Voltage	95-126VAC OR 194-253VAC±4%lusmn;4%lusmn;4%
Line Low Transfer	85VAC±4% OR 184VAC ±4%4VAC ±4%usmn;4%4VAC ±4%
Line Low Return	95VAC±4% OR 194VAC ±4%4VAC ±4%usmn;4%4VAC ±4%
Line high Transfer	136VAC±4%/263VAC±4%63VAC±4%usmn;4%63VAC±4%
Line high Return	126VAC±4%/253VAC±4%53VAC±4%usmn;4%53VAC±4%
Frequency	50Hz:41-54Hz or 60Hz:51-64Hz (auto sensing)
Output
Phase & waveformeformeform	Single phase & Pure Sine Wave (bypass mode sync to input)nput)nput)
Voltage	110/120/130VAC OR 220/230/240VAC±10%rmsn;10%rmsn;10%rms (bypass mode sync to input)
Frequency	50Hz/60Hz±0.3Hz (bypass mode sync to input)o input)o input)
Peak Power	3 times of rating power
Short Circuit Protection	Yes, shutdown after 10ms
Power Factor	0.9-1.0
DC Input
Battery Voltage	12VDC OR 24VDC OR 48VDC
Minimum Start Voltage	10V for 12V, 20V for 24V, 40V for 48V
Low Battery Alarm	10.5V for 12V, 21V for 24V, 42V for 48V
Low Battery Transfer	10V for 12V, 20V for 24V, 40V for 48V
High Voltage Alarm	16V for 12V, 32V for 24V, 64V for 48V
Max Charging Current	20A/35A/50A/75A/90A(According to the inverter model)
Transfer Efficiency
Line Mode	>96%
Battery Mode	>85%
System Parameter
power saver	load <= 25 Watts(Enabled on "P/S auto"setting of Remote control)emote control)
Audible Alarm	Sounding when the heat sink's tem is over 105ºCand shutdown after 30 seconds.conds.conds.
Over load Protections	110%Load﹥150%,beeps 0.5s every 1s,and Fault after 20sr 20s
Protections	low battery,over charging,over temp,over load
Communications	RS-232/USB/SNMP(custom-made)
Environmental
Operating Environment	0-40ºC,0-90%RH(non-condensing)nsing)nsing)
Audible Noise	<60dB60dB
Physical
Net Weight(KG)	15	17.5	19.5	25	35.5	39	47.5
Dimension, L X W X H(mm)	470223185				650223185
* Product specifications are subject to change without further notice
