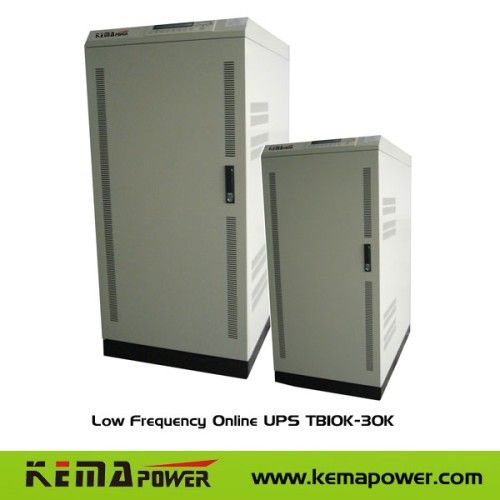

Tb Low Frequency Online UPS (TB10K-30K)

Tb Low Frequency Online UPS (TB10K-30K)

1350-5550 USD

add to cart
Model NO. TB10K-30K
Type On-line
Size 700*365*950-780*580*1170
Specification TB10K-30K
HS Code 8504402000
Phase Three Phase
Protection Short Circuit
Trademark KEMAPOWER
Origin China
TB Low Frequency Online UPS (TB10K-30K)
* I/P: Three Phase, wire voltage 380V/ 205V , O/P:220VAC or 110VAC ± 1%usmn; 1%usmn; 1%
* Capacity:10K/12K/15K/20K/30K/40KVA
* Output PF: 0.8
* Wave Form:Pure sine wave
* Transfer Time:0 ms
* DC Voltage: 10/12/15/20KVA:192VDC,30/40KVA:384VDC
* Bat.:External Batterys
* Charge Current: 10/12/15/20KVA:10A,30/40KVA:6-30A adjustable
Key features:
1. Three phase in, one phase out
2. Microprocessor control
3.100% unbalance protection design
4. True on-line double conversion design providing all power protection
5. Isolated output
6. Sine wave pulse width modulation
7. IGBT inverter design.
8. Wide Input voltage windows
9. Pure sine wave output less than 3% THD
10. Expandable battery run time
11. Generator compatible
12. Cold start
13. Load/Battery power meter display
14. Overload, on-line, battery status LED/LCD
15. Advanced Battery Management
16. Automatic charging in UPS off mode
17. Smart RS-232 communication port
18. Optional SNMP card
Capacity:
* TB10kVA/8KW/ 192VDC/6A,
* TB15kVA/12KW/192VDC/6A,
* TB20kVA/16KW/192VDC/6A,
* TB30kVA/24KW/384VDC/20A,
Input:
* 380V/190V
Output;
* 220V/110V
Wave Form;
* pure sine wave.
MODEL TB10K TB15K TB 20K TB30K
Power Capacity 10KVA 15KVA 20KVA 30KVA
8KW 12KW 16KW 24KW
Input Voltage Range 380V±20%(3 phase) or 205V±20%(3 phase)mn;20%(3 phase)mn;20%(3 phase)
Frequency 50Hz±5% or 60Hz±5% 60Hz±5%usmn;5% 60Hz±5%
Phase 3 Phase + GND
Output Voltage Range 220V±1% or 110VAC ±1%0VAC ±1%usmn;1%0VAC ±1%
Phase Single phase + GND
Frequency 50 (60)Hz ± 0.3%mn; 0.3%mn; 0.3%
Waveform Pure sine wave
Overload Capacity Overload 125% for 10 Mins, 125%-150% for 30s .automatically resume when load become normal
Power factor 0.8
THD < 3%(linear load), < 5%(nonlinear load)r load)
Battery Battery Type Sealed lead acid, maintenance free
DC Voltage 192VDC 384VDC
Max Charge Current 10A 6~30A
Efficiency Whole unit >85%
Transfer Time 0ms
Panel Indication LCD Input,oupt,battery voltage,frequency,load rate,UPS state, temperature
LED Main input , bypass,Inverter,Battery,Over load,Fault
Environment Temperature 0~40ºCordm;Cordm;C
Humidity 0~95%(non condensing)
Noise <58dB(1m)(1m)
Communication Interface RS232
Software 1.Power status 2.UPS shutdown 3.Monitor UPS status 4.UPS self test 5.Auto-save files
Product size(mm) 700*365*950 780*580*1170
product weight(Kg) 88 155 155 300
Package size(mm) 780*430*1110 945*745*1395
Package weight(Kg) 98 165 165 350
