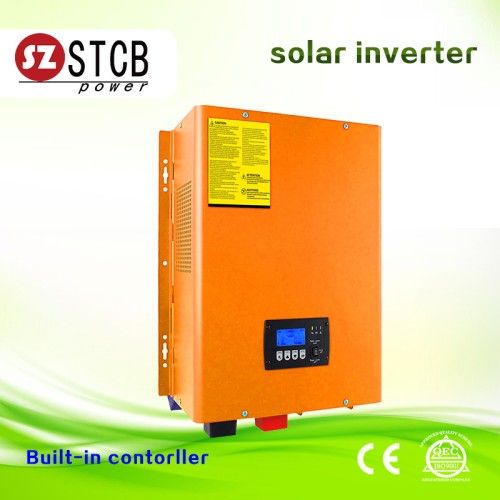

Built-in MPPT Solar Controller Power Inverter 8000W 10000W 12000W

780-950 USD

Model NO.	PL20 series inverter
Phase	Single
Certification	CE, ISO9001
Type	DC/AC Inverters
Nature of Wave String	Sine Wave Inverter
Output Voltage	230V AC +/- 10%
Output Frequency	60Hz/50Hz
Solar Charge Controller	60A
Efficiency	97%
Application	Air Conditioner
Specification	CE
HS Code	8504403090
Nature of Source Flow	Passive inverter
Output Power	>1000W
Brand	Stcb
Power Source	Solar Power
Input Voltage	230V AC
Waveform	Pure Sine Wave
Charge Current	50A/70A/90A
Charger Mode	MPPT
DC Input	24V / 48V
Trademark	STCB
Origin	Guangdong Shenzhen

Built-in Mppt solar controller power inverter 8000w 10000w 12000w
Product descriptions:
1,AC/Solar charging hybird off grid inverter;
2,LED/LCD display,Enhanced functions setting via LCD,Man-machine intelligent design;
3,Built-in 40A/60A optional MPPT solar charge controller;
4,Remote external dispaly panel realize remote operation;
5,Five stages adjustable AC charging current,AC charging also can be closed;
6,AC/DC priority modes can be set;
7,Generator restart single(Dry contact);
8,Three times peak power,strong loading capacity;
9,Over load,output short circuit protection.
Specifications:

Model No.	PL20-1000	PL20-2000	PL20-3000	PL20-4000	PL20-5000	PL20-6000	PL20-8000	PL20-10000	PL20-12000
Nominal Power	1000W	2000W	3000W	4000W	5000W	6000W	8000W	10000W	12000W
AC Input
Phase & waveformeformeform	Single phase & Pure Sine Wave Wave Wave
Voltage	120VAC/230VAC					230VAC
Voltage Range	85-130VAC for 120VAC,185-265VAC for 230vac					185-265VAC for 230vac
Frequency	50Hz:41-54HZ or 60Hz:51-64HZ (auto sensing)
AC Output
Phase & waveformeformeform	Single phase & Pure Sine Wave Wave Wave
Voltage	120VAC/230VAC					230VAC
Voltage Regulation	±10%rmsn;10%rmsn;10%rms
Frequency	60HZ/50HZ±0.3Hzmn;0.3Hzmn;0.3Hz					50HZ/60HZ±0.3Hzmn;0.3Hzmn;0.3Hz
Peak Power	3 times of rating power
AC charger
Norminal Charging Current	20A/35A/50A/70A/90A (5 stages adjustable charging current)
Over charge protection	Bat.V≥15.5VDC for 12V battery,Bat.V≥31.0VDC for 24V battery,attery,attery, Bat.V≥62.0VDC for 48V battery,beeps 0.5s every 1s & fault after 60sfter 60sfter 60s
Three stage charging	Boost CC (constant current stage) Boost CV (constant voltage stage) Float (constant voltage stage)
Solar charge controller
Rated charge cuurent	40A or 60A
Rated charge battery voltage type	12v/24v/48v 40A ; 12v/24v 60A
Max. PV open circuit array voltage	12V for 40Vdc,24V for 55Vdc,48V for 110Vdc
Charge mode	MPPT
Efficiency	≥97%;97%;97%
PV low voltage re-connect	PV≥Bat.v=3Vv=3Vv=3V
PV low voltage disconnect	PV≤Bat.vat.vat.v
Battery voltage
Norminal DC input Voltage	12v/24v		24v/48v				48v
Minimum Start Voltage	10V for 12V, 20V for 24V, 40V for 48V
DC input voltage range	10.5VDC±0.3VDC ~ 16VDC±0.3VDC for 12V;0.3VDC for 12V;0.3VDC for 12V
	20VDC±0.6VDC ~ 32VDC±0.6VDC for 24V;0.6VDC for 24V;0.6VDC for 24V
	42VDC±1.2VDC ~ 164VDC±1.2VDC for 48V;1.2VDC for 48V;1.2VDC for 48V
Transfer Efficiency
Line Mode	>95%
Battery Mode	>88%
Transfer time
AC to DC	20ms(max)
DC to AC	15ms(max)
System parameter
Protections	Low battery voltage,over charging,over load,over temp
Over load protection	110%Load﹥150%,beeps 0.5s every 1s, and fault after 20s.20s.
Output short circuit protection	current limit (fault after 10s)
Surge rating(10s)	1:3(VA)
Power saver	Load 25W(Enabled on 'P/S auto' setting of remote control )e control )
Indicators	LED&LCD displaysplaysplay
General specifications
Operating Temperature	0ºC to 40ºCo 40ºCrdm;Co 40ºC
Storage temperature	-15ºC to 60ºCo 60ºCrdm;Co 60ºC
Opration humidity	5% to 95% (non condensing)
Audible Noise	≤60dB60dB60dB
Cooling	Forced air,Variable speed fan
