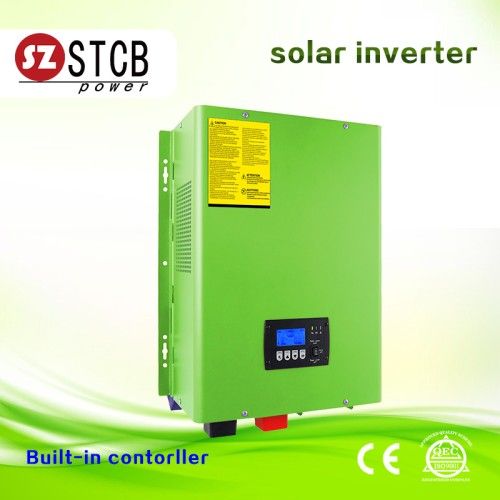

Pl20 Series Green Power DC to AC Solar Inverter with Charger
| Model NO. | PL20 series inverter |
| Phase | Single |
| Certification | CE, ISO9001 |
| Type | DC/AC Inverters |
| Nature of Wave String | Sine Wave Inverter |
| Output Voltage | 120V AC /230V AC +/- 10% |
| Output Frequency | 60Hz/50Hz |
| Solar Charge Controller | 40A/60A |
| Efficiency | 97% |
| Trademark | STCB |
| Origin | Guangdong Shenzhen |
| Nature of Source Flow | Passive inverter |
| Output Power | >1000W |
| Brand | Stcb |
| Power Source | Solar Power |
| Input Voltage | 120V AC /230V AC |
| Waveform | Pure Sine Wave |
| Charge Current | 20A/35A/50A/70A/90A |
| Charger Mode | MPPT |
| DC Input | 12V / 24V / 48V |
| Specification | CE |
| HS Code | 8504403090 |
PL20 series Green Power DC to AC Solar Inverter with Charger
Product descriptions:
1,AC/Solar charging hybird off grid inverter;
2,LED/LCD display,Enhanced functions setting via LCD,Man-machine intelligent design;
3,Built-in 40A/60A optional MPPT solar charge controller;
4,Remote external dispaly panel realize remote operation;
5,Five stages adjustable AC charging current,AC charging also can be closed;
6,AC/DC priority modes can be set;
7,Generator restart single(Dry contact);
8,Three times peak power,strong loading capacity;
9,Over load,output short circuit protection.
Specifications:
our services:
1. We can be customized according to customer needs and find a good sample logistics, please provide the exact address, company name, phone us.
2. 1% pcb board is provided
3. if by container , you can let us know your own shipping agent or use our cooperated agent
4. 1year warrenty , if it is our quality problem , we will provide the parts for free .
FAQ:
Q1 : What is you advantages?
A1:
a).We are professional ups manufacturer for more than ten years and we have these staffs with rich
production and R&D&Dp;D&D
b) Excellent workers and skilled engineers
c).Our aims are to provide every customer high quality, reasonable price and excellent
service.
d)we can guarantee to send the goods on time. And also accept any transportation ways that
you require
Q2 : How do you control the production quality?
A2:
a) For materials, we have IQC departments and the IQC testing follow MIL-STD-105E standard
b) in production have 4 times function testing
c) all of our products with 100% burn-in testing
d) 100% QC testing before delivery
Q3 : Do you accept OEM/ODM?
A3 : ODM&OEM are warmly welcomed !!!d !!!d !!!
Q4 : what's your payment?
A4:
a) We can accept payment terms of T/T, Western Union, PayPal.
Samples and trial order accept PayPal ,T/T & Western Union. normal order accept T/T &Western Uniontern Unionern Union
b) 30% ADVANCE DEPOSIT after buyer's confirmed payment, the balance should be paid before shipping when goods are ready.
Product descriptions:
1,AC/Solar charging hybird off grid inverter;
2,LED/LCD display,Enhanced functions setting via LCD,Man-machine intelligent design;
3,Built-in 40A/60A optional MPPT solar charge controller;
4,Remote external dispaly panel realize remote operation;
5,Five stages adjustable AC charging current,AC charging also can be closed;
6,AC/DC priority modes can be set;
7,Generator restart single(Dry contact);
8,Three times peak power,strong loading capacity;
9,Over load,output short circuit protection.
Specifications:
| Model No. | PL20-1000 | PL20-2000 | PL20-3000 | PL20-4000 | PL20-5000 | PL20-6000 | PL20-8000 | PL20-10000 | PL20-12000 |
| Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W |
| AC Input | |||||||||
| Phase & waveformeformeform | Single phase & Pure Sine Wave Wave Wave | ||||||||
| Voltage | 120VAC/230VAC | 230VAC | |||||||
| Voltage Range | 85-130VAC for 120VAC,185-265VAC for 230vac | 185-265VAC for 230vac | |||||||
| Frequency | 50Hz:41-54HZ or 60Hz:51-64HZ (auto sensing) | ||||||||
| AC Output | |||||||||
| Phase & waveformeformeform | Single phase & Pure Sine Wave Wave Wave | ||||||||
| Voltage | 120VAC/230VAC | 230VAC | |||||||
| Voltage Regulation | ±10%rmsn;10%rmsn;10%rms | ||||||||
| Frequency | 60HZ/50HZ±0.3Hzmn;0.3Hzmn;0.3Hz | 50HZ/60HZ±0.3Hzmn;0.3Hzmn;0.3Hz | |||||||
| Peak Power | 3 times of rating power | ||||||||
| AC charger | |||||||||
| Norminal Charging Current | 20A/35A/50A/70A/90A (5 stages adjustable charging current) | ||||||||
| Over charge protection | Bat.V≥15.5VDC for 12V battery,Bat.V≥31.0VDC for 24V battery,attery,attery, Bat.V≥62.0VDC for 48V battery,beeps 0.5s every 1s & fault after 60sfter 60sfter 60s | ||||||||
| Three stage charging | Boost CC (constant current stage) Boost CV (constant voltage stage) Float (constant voltage stage) | ||||||||
| Solar charge controller | |||||||||
| Rated charge cuurent | 40A or 60A | ||||||||
| Rated charge battery voltage type | 12v/24v/48v 40A ; 12v/24v 60A | ||||||||
| Max. PV open circuit array voltage | 12V for 40Vdc,24V for 55Vdc,48V for 110Vdc | ||||||||
| Charge mode | MPPT | ||||||||
| Efficiency | ≥97%;97%;97% | ||||||||
| PV low voltage re-connect | PV≥Bat.v=3Vv=3Vv=3V | ||||||||
| PV low voltage disconnect | PV≤Bat.vat.vat.v | ||||||||
| Battery voltage | |||||||||
| Norminal DC input Voltage | 12v/24v | 24v/48v | 48v | ||||||
| Minimum Start Voltage | 10V for 12V, 20V for 24V, 40V for 48V | ||||||||
| DC input voltage range | 10.5VDC±0.3VDC ~ 16VDC±0.3VDC for 12V;0.3VDC for 12V;0.3VDC for 12V | ||||||||
| 20VDC±0.6VDC ~ 32VDC±0.6VDC for 24V;0.6VDC for 24V;0.6VDC for 24V | |||||||||
| 42VDC±1.2VDC ~ 164VDC±1.2VDC for 48V;1.2VDC for 48V;1.2VDC for 48V | |||||||||
| Transfer Efficiency | |||||||||
| Line Mode | >95% | ||||||||
| Battery Mode | >88% | ||||||||
| Transfer time | |||||||||
| AC to DC | 20ms(max) | ||||||||
| DC to AC | 15ms(max) | ||||||||
| System parameter | |||||||||
| Protections | Low battery voltage,over charging,over load,over temp | ||||||||
| Over load protection | 110% | ||||||||
| Output short circuit protection | current limit (fault after 10s) | ||||||||
| Surge rating(10s) | 1:3(VA) | ||||||||
| Power saver | Load 25W(Enabled on 'P/S auto' setting of remote control )e control ) | ||||||||
| Indicators | LED&LCD displaysplaysplay | ||||||||
| General specifications | |||||||||
| Operating Temperature | 0ºC to 40ºCo 40ºCrdm;Co 40ºC | ||||||||
| Storage temperature | -15ºC to 60ºCo 60ºCrdm;Co 60ºC | ||||||||
| Opration humidity | 5% to 95% (non condensing) | ||||||||
| Audible Noise | ≤60dB60dB60dB | ||||||||
| Cooling | Forced air,Variable speed fan | ||||||||
our services:
1. We can be customized according to customer needs and find a good sample logistics, please provide the exact address, company name, phone us.
2. 1% pcb board is provided
3. if by container , you can let us know your own shipping agent or use our cooperated agent
4. 1year warrenty , if it is our quality problem , we will provide the parts for free .
FAQ:
Q1 : What is you advantages?
A1:
a).We are professional ups manufacturer for more than ten years and we have these staffs with rich
production and R&D&Dp;D&D
b) Excellent workers and skilled engineers
c).Our aims are to provide every customer high quality, reasonable price and excellent
service.
d)we can guarantee to send the goods on time. And also accept any transportation ways that
you require
Q2 : How do you control the production quality?
A2:
a) For materials, we have IQC departments and the IQC testing follow MIL-STD-105E standard
b) in production have 4 times function testing
c) all of our products with 100% burn-in testing
d) 100% QC testing before delivery
Q3 : Do you accept OEM/ODM?
A3 : ODM&OEM are warmly welcomed !!!d !!!d !!!
Q4 : what's your payment?
A4:
a) We can accept payment terms of T/T, Western Union, PayPal.
Samples and trial order accept PayPal ,T/T & Western Union. normal order accept T/T &Western Uniontern Unionern Union
b) 30% ADVANCE DEPOSIT after buyer's confirmed payment, the balance should be paid before shipping when goods are ready.
